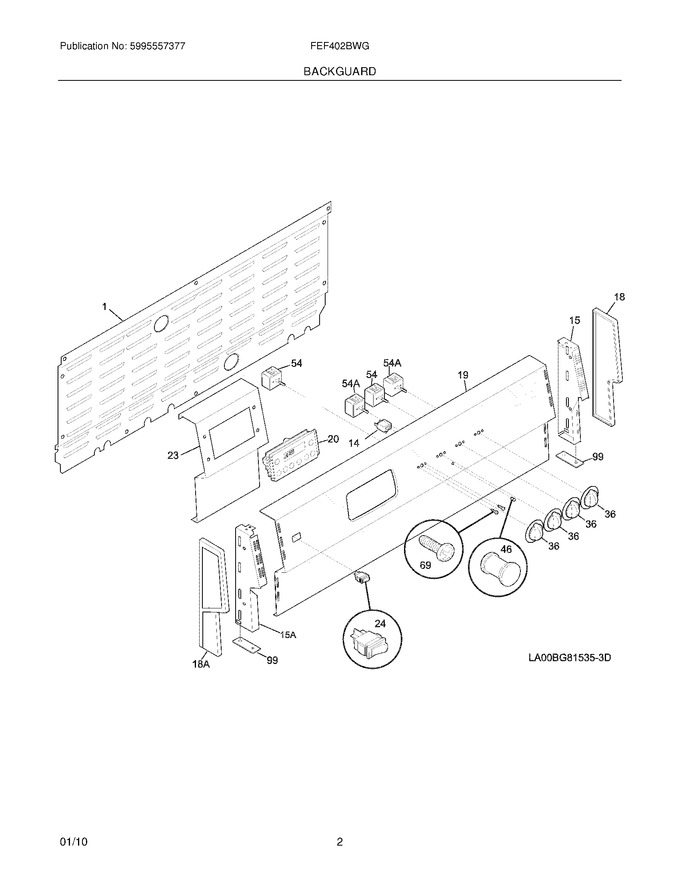

03 - Backguard


05 - Body


07 - Top/drawer/small Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318086913		Shield,backguard		Appelez-nous	-
15	318161902		Bracket,end Cap ,rh				$ 48.88
18	318190612		End Cap,white ,rh		Appelez-nous	-
19	318194100		Panel,control ,white		Appelez-nous	-
23	318015044		Bracket,clock/timer Mtg		Appelez-nous	-
36	318196633		Knob,control ,white				$ 62.95
46	318044512		Lens,indicator Light		Appelez-nous	-
69	5303288565		Screw,8-32 X 3/16 ,(8)   (Replaces: 5303323134)				$ 3.12
99	5303304544		Spacer,end Cap Mtg.		Appelez-nous	-
15A	318161903		Bracket,end Cap ,lh		Appelez-nous	-
18A	318190613		End Cap,white ,lh		Appelez-nous	-
F14	318369501		Lamp,indicator			Immediately	$ 67.62
F20	318185329		Clock/timer,eoc ,white ,es100		Appelez-nous	-
F24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
F54	318293820		Switch,surface Element ,small				$ 83.62
F54A	318120501		Switch,surface Unit ,small & Large				$ 244.13
NI	318214400		Overlay,clock ,white		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
