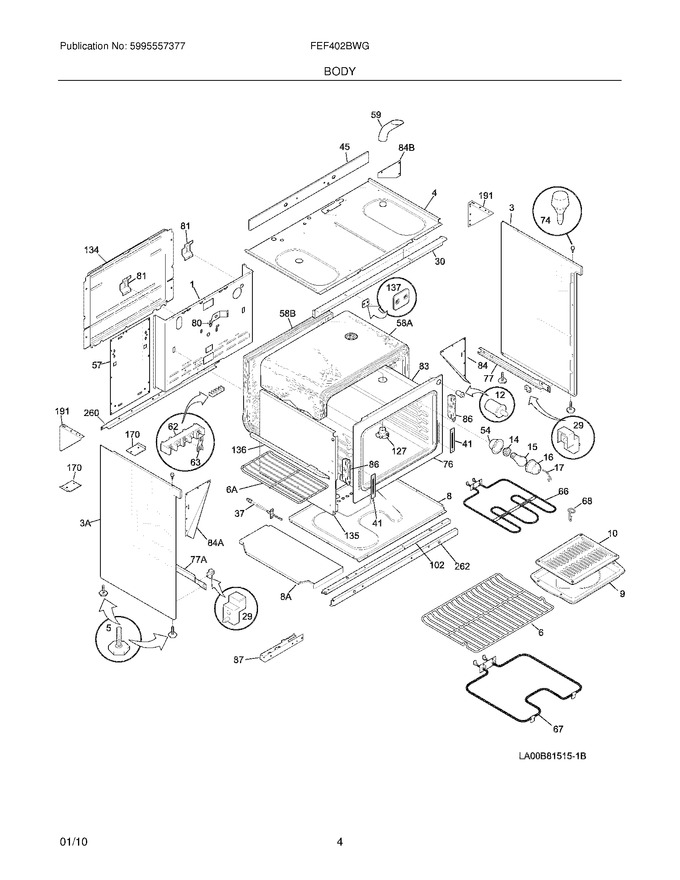

05 - Body


07 - Top/drawer/small Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066415		Panel,main Back		Appelez-nous	-
3	318066132		Panel,bodyside ,white ,rh		Appelez-nous	-
4	318073713		Panel,subtop		Appelez-nous	-
5	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 24.26
6	318025314		Rack,oven			Immediately	$ 148.70
8	5303326189		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318179113		Shield,bottom				$ 76.65
29	318161600		Guide,oven Drawer ,nylon ,front		Appelez-nous	-
30	318023923		Bracket,main Top		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
45	318057401		Panel,wiring Shield		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
57	318055701		Panel,small Oven Back		Appelez-nous	-
59	318549806		Tube,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
63	318264200		Plate,grounding Strap				$ 23.51
68	5304403015		Support,hanger ,broil Element				$ 35.04
74	318147420		Bumper,base		Appelez-nous	-
76	318056006		Frame,oven ,front		Appelez-nous	-
77	318018000		Rail,drawer Glide ,rh		Appelez-nous	-
80	5303324473		Bracket,oven Mounting		Appelez-nous	-
81	318192400		Spring,oven				$ 312.53
83	318089613		Liner,oven				$ 205.64
84	5303326184		Gusset,rh Rear		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
87	318111800		Plate,cord Set Mtg		Appelez-nous	-
102	318111901		Channel,oven Support ,black		Appelez-nous	-
127	318317000		Adapter,vent Tube				$ 19.16
134	5303310515		Panel,wiring Cover ,rear				$ 368.97
135	318072401		Partition-center		Appelez-nous	-
136	5301315199		Glide-storage Rack		Appelez-nous	-
137	318090310		Latch,door			Immediately	$ 44.61
170	5304405241		Anti-tip Bracket				$ 59.17
191	318322800		Angle,rear Plenum ,(2)		Appelez-nous	-
260	318055500		Bracket,gusset Support		Appelez-nous	-
262	08011954		Channel,oven Support ,front				$ 47.60
3A	318066133		Panel,bodyside ,white ,lh		Appelez-nous	-
58A	318285000		Insulation,oven Wrapper		Appelez-nous	-
58B	318285013		Insulation,oven Back				$ 50.24
6A	318345700		Rack,oven ,small		Appelez-nous	-
77A	318018001		Rail,drawer Glide ,lh		Appelez-nous	-
84A	5303326185		Gusset,lh Rear		Appelez-nous	-
84B	318055902		Gusset,rear		Appelez-nous	-
F12	318394803		Switch,light ,door   (Replaces: 318394801)			Immediately	$ 44.23
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 192.78
F67	318255006		Element,bake ,3000w   (Replaces: 318255002)			Immediately	$ 185.14
FNI	318532145		Harness,wiring ,ground Terminal		Appelez-nous	-
FNI	318532146		Harness,wiring ,ground Terminal		Appelez-nous	-
FNI	318232421		Harness,wiring ,door Switch		Appelez-nous	-
FNI	318199616		Wiring Harness		Appelez-nous	-
NI	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303051099		Nut, Hex, 10-32		Appelez-nous	-
