01 - Body
02 - Control Panel
03 - Door/drawer (cgx3d1, Cgx3d1k)
04 - Gas Controls (cgx3d1k)
05 - Oven
SELECT A DIAGRAM
New Model Search:

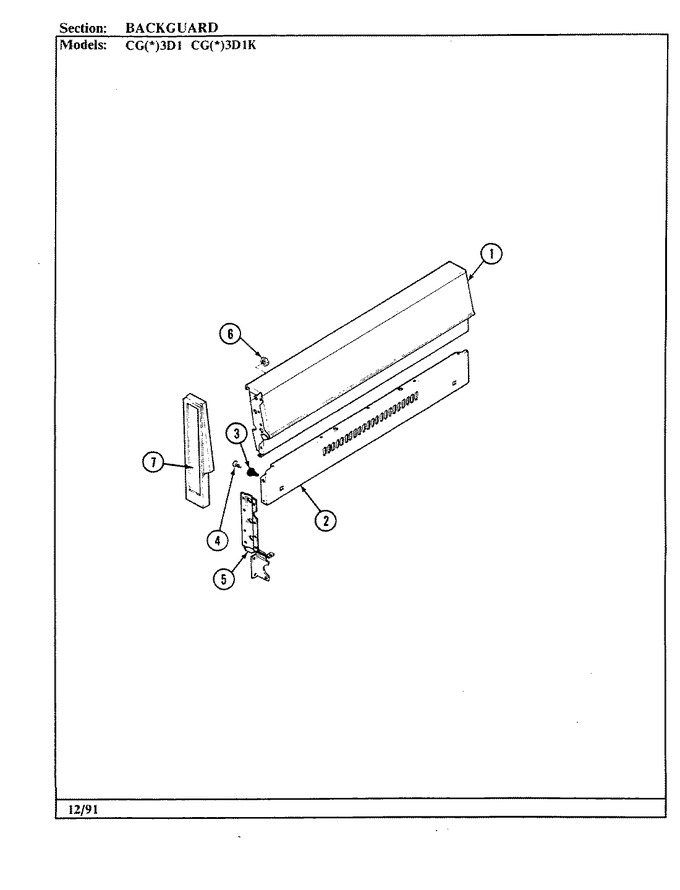

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4005F071-80 | Cover, Bkgd. Wire | 1 |
|
- | ||||
| 1 | 4005F034-80 | Cover, Bottom | 1 |
|
- | ||||
| 1 | 2601W302-81 | Panel Bkgd White | 1 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 2 | 2620W018-23 | Panel, Backguard Lower | 1 |
|
- | ||||
| 3 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 4 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 5 | WPW10068250 | Screw (Replaces: 7101P074-60) | 1 |
|
$ 3.66 | ||||
| 5 | 3807W357-51 | Support Bkgd Lf | 1 |
|
- | ||||
| 5 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 5 | 3807W358-51 | Support Bkgd Rt | 1 |
|
- | ||||
| 6 | 7103P053-60 | Nut, Push-on End Cap | 1 |
|
- | ||||
| 7 | 7726P020-60 | End Cap, Backguard (rt-blk) | 1 |
|
- | ||||
| 7 | 7726P009-60 | End Cap, Backguard (lt-blk) | 1 |
|
- |
