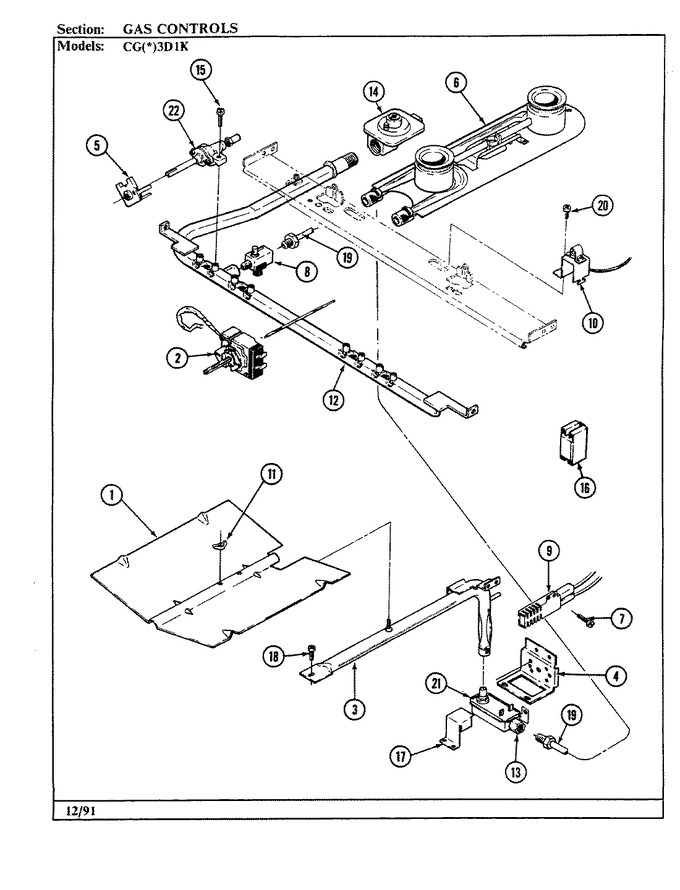

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F181-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 2 | 7404P062-60 | Thermostat, Oven | 54 |
|
- | ||||
| 2 | 3604F030-51 | Shield, Themostat | 1 |
|
- | ||||
| 2 | 7101P043-60 | Screw, Control Valve | 1 |
|
- | ||||
| 2 | 7515P008-60 | Thermostat | 1 |
|
- | ||||
| 2 | 7404P063-60 | Thermostat | 46 |
|
- | ||||
| 3 | 3403D027-45 | Burner, Oven | 60 |
|
- | ||||
| 3 | 3403A015-45 | Burner Oven | 57 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 1 |
|
- | ||||
| 4 | 3807F120-34 | Support | 1 |
|
- | ||||
| 5 | 7403P216-60 | Switch, Top Burner | 50 |
|
- | ||||
| 5 | WP7403P190-60 | Switch, Burner (Replaces: 7403P190-60) | 66 |
|
$ 118.82 | ||||
| 5 | 7403P259-60 | Switch | 62 |
|
- | ||||
| 5 | 7403P285-60 | Switch, Igniter | 67 |
|
$ 54.75 | ||||
| 5 | 7403P107-60 | Switch, Top Burner | 68 |
|
- | ||||
| 6 | 3412A004-23 | Uni-burner Assy | 1 |
|
- | ||||
| 7 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 8 | 7502P002-60 | Valve, Shut Off | 1 |
|
- | ||||
| 9 | 7401P018-60 | Block | 1 |
|
- | ||||
| 9 | 12400035 | Igniter Bake (Replaces: 7432P062-60) | 1 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P008-60 | Igniter, Top (lt) | 1 |
|
- | ||||
| 10 | 7432P015-60 | Igniter, Top Burner | 1 |
|
$ 53.77 | ||||
| 11 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 12 | 7513P101-60 | Pipe, Manifold | 66 |
|
- | ||||
| 12 | 7513P043-60 | Pipe, Manifold----na | 1 |
|
- | ||||
| 12 | 7513P133-60 | Pipe, Manifold | 68 |
|
- | ||||
| 13 | 1555251 | Nut, Loxit (3/8``) | 1 |
|
- | ||||
| 14 | 7510P002-60 | Regulator, Pressure | 1 |
|
- | ||||
| 15 | 7101P296-60 | Screw | 50 |
|
- | ||||
| 15 | 7101P044-60 | Screw, Valve | 68 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 66 |
|
- | ||||
| 16 | 7431P006-60 | Module, Spark | 1 |
|
- | ||||
| 17 | 4005F173-51 | Cover, Valve Terminal | 1 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 19 | 3414F049-44 | Tubing, 3/8`` X 54.5`` | 1 |
|
- | ||||
| 20 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 | ||||
| 21 | 7501P017-60 | Valve, Oven | 1 |
|
- | ||||
| 21 | 7501P108-60 | Valve, Oven | 60 |
|
- | ||||
| 22 | 7502P174-60 | Valve, Top Burner | 68 |
|
- | ||||
| 22 | 7502P222-60 | Valve | 67 |
|
- | ||||
| 22 | 7502P109-60 | Valve, Top Burner | 66 |
|
- | ||||
| 22 | 7214P003-60 | Sleeve | 1 |
|
- |
