SELECT A DIAGRAM

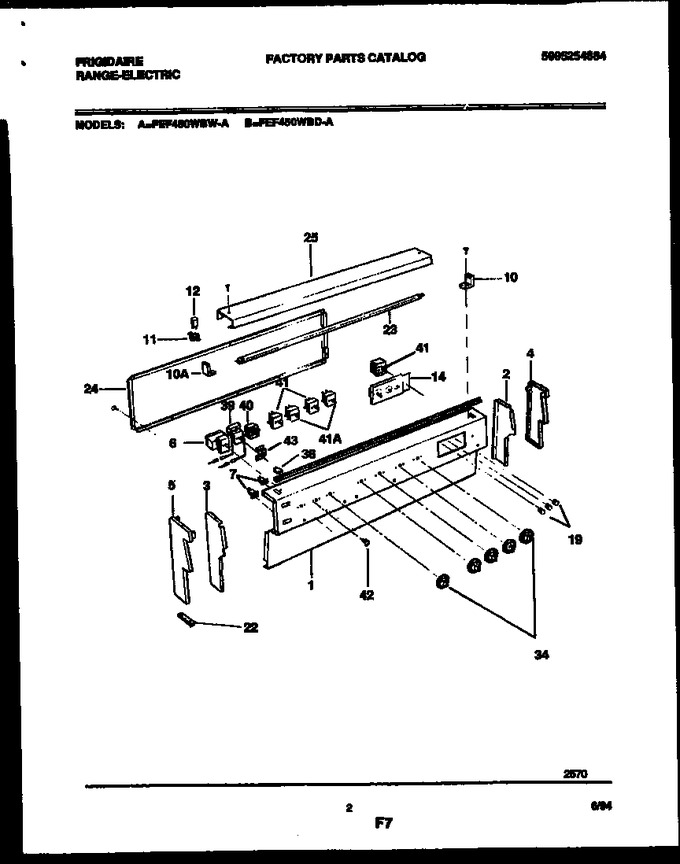

02 - Control Panel
03 - Door And Drawer Parts
04 - Door Parts
05 - Cooktop And Broiler Parts
06 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303305160 | Panel-control |
|
- | |||||
| 2 | 5303304000 | Bracket-end Cap |
|
$ 7.14 | |||||
| 3 | 5303304001 | Bracket-end Cap |
|
$ 5.62 | |||||
| 4 | 5303304003 | End Cap-rh |
|
- | |||||
| 5 | 5303304005 | End Cap-lh |
|
- | |||||
| 6 | 08015774 | Thermostat-small Oven |
|
- | |||||
| 7 | 5303276422 | Switch-rocker (2) |
|
- | |||||
| 10 | 5303304542 | Holder-lamp (2) |
|
- | |||||
| 11 | 5303286746 | Receptacle-stater |
|
$ 42.95 | |||||
| 12 | 5308068062 | Starter |
|
$ 30.46 | |||||
| 14 | 5303304817 | Clock |
|
- | |||||
| 19 | 316029000 | Knob-timer |
|
- | |||||
| 22 | 5303304544 | Spacer |
|
- | |||||
| 23 | 5303286690 | Fluorescent Lamp |
|
- | |||||
| 24 | 5303304006 | Cover-wire |
|
- | |||||
| 25 | 5303304008 | Top-panel |
|
- | |||||
| 34 | 5303297395 | Knob |
|
- | |||||
| 36 | 5303051533 | Light-signal |
|
$ 53.81 | |||||
| 39 | 5303300188 | Oven Control |
|
$ 376.43 | |||||
| 40 | 5303304009 | Selector |
|
- | |||||
| 41 | 5303299248 | Infinite Switch-1150w |
|
- | |||||
| 42 | 5303292013 | Screw |
|
- | |||||
| 43 | 5303304010 | Bracket-oven Control |
|
- | |||||
| 10A | 5303304543 | Holder-lamp (2) |
|
$ 7.72 | |||||
| 36A | 5308012563 | Lamp-indicator Oven |
|
- | |||||
| 36B | 3051539 | Light-signal-oven |
|
$ 60.53 | |||||
| 36C | 5308006417 | Lens-light (non-illustrated) |
|
$ 19.06 | |||||
| 41A | 5303299249 | Infinite Switch-1950w |
|
- |
