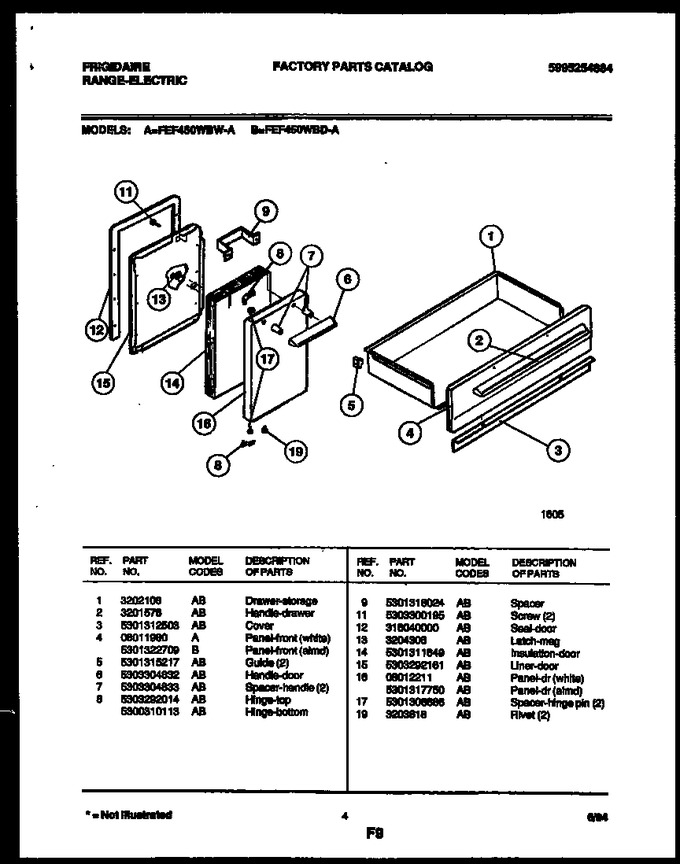

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer, Storage		Appelez-nous	-
2	3201576		Handle-drawer		Appelez-nous	-
3	5301312503		Cover		Appelez-nous	-
4	5301322709		Panel - Front (almd)		Appelez-nous	-
5	5301315217		Guide (2)		Appelez-nous	-
6	5303304832		Handle-door		Appelez-nous	-
7	5303304833		Spacer-handle (2)		Appelez-nous	-
8	5303292014		Hinge-top		Appelez-nous	-
9	5301318024		Spacer		Appelez-nous	-
11	5303300195		Screw (2)		Appelez-nous	-
12	316040000		Seal-door		Appelez-nous	-
13	3204306		Latch-mag		Appelez-nous	-
14	5301311649		Insulation, Door		Appelez-nous	-
15	5303292161		Liner-door		Appelez-nous	-
16	5301317750		Panel-dr (almd)		Appelez-nous	-
16	08012211		Panel-dr (white)		Appelez-nous	-
17	5301306686		Spacer-hinge Pin (2)		Appelez-nous	-
19	3203618		Rivet (2)		Appelez-nous	-
8A	5300310113		Hinge, Bottom		Appelez-nous	-
