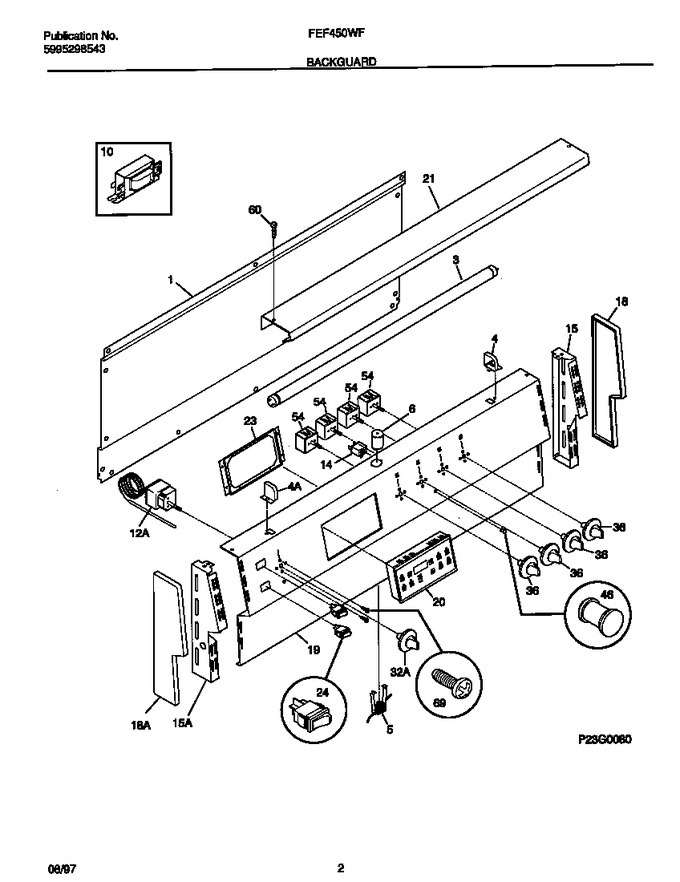

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304006		Shield-backguard, Rear Wall		Appelez-nous	-
3	5303286690		Lamp-fluorescent, Backguard		Appelez-nous	-
4	5303304542		Receptacle-lamp, Rh		Appelez-nous	-
4	5303304543		Receptacle-lamp, Lh				$ 7.72
5	5303286746		Socket-starter				$ 42.95
6	5308068062		Starter,lamp				$ 30.46
10	318122801		Ballast-lamp		Appelez-nous	-
12	08015774		Thermostat-oven		Appelez-nous	-
14	3051539		Light/lamp-oven, Indicator				$ 60.53
15	5303304001		Bracket-endcap, Lh				$ 5.62
18	5303304003		End Cap, Almond, Rh		Appelez-nous	-
18	5303304005		End Cap, Almond, Lh		Appelez-nous	-
19	318005712		Panel-control		Appelez-nous	-
21	318051303		Trim-canopy/shield, Top		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
32	318016325		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
54	318120501		Switch-surface Unit, (4)				$ 244.13
60	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
69	5303323137		Screw, Switch Mtg   (Replaces: 5303305528)				$ 11.88
*28560	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*28561	5303311318		End Connector		Appelez-nous	-
*28562	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
15A	5303304000		Bracket-endcap, Rh				$ 7.14
15B	5303304544		Spacer-end Cap (not Illustrated)		Appelez-nous	-
20A	318013006		Clock/timer, Electronic		Appelez-nous	-
20B	316101503		Overlay-clock (not Illustrated)		Appelez-nous	-
23A	318015006		Bracket-clock Mtg		Appelez-nous	-
23B	5303288566		Screw-bracket, Clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
