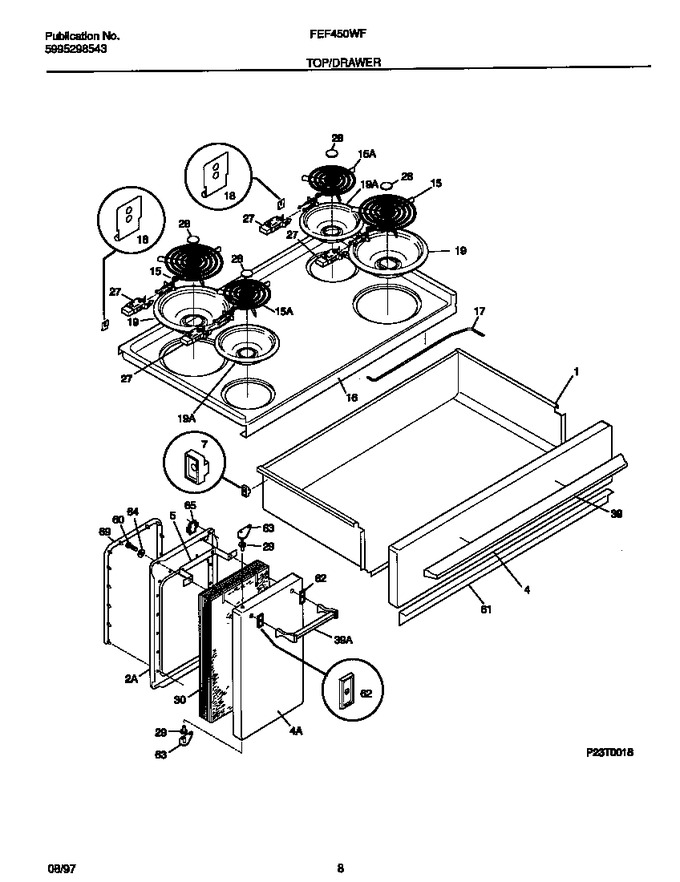

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
2	318048204		Liner-small Door		Appelez-nous	-
4	5303326191		Panel-drawer, Almond		Appelez-nous	-
4	318009309		Panel-oven Door, Almond, Small		Appelez-nous	-
5	318014500		Spacer-handle		Appelez-nous	-
7	5301315217		Glide-drawer		Appelez-nous	-
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
15	PS12-4BK		Element-surface, Small, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
16	08011984		Main Top, Almond		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
29	318141800		Spacer-hinge Pin				$ 14.49
30	5301311649		Insulation-door, Small Oven		Appelez-nous	-
39	318040603		Handle-door		Appelez-nous	-
60	5303317975		Screw-oven Door, 10 X 1/2, (5)		Appelez-nous	-
61	318107700		Toeplate		Appelez-nous	-
62	3201572		Spacer-handle, (2)		Appelez-nous	-
64	3201899		Washer, Hinge Assy, (4)		Appelez-nous	-
65	3204306		Latch-door, Small		Appelez-nous	-
69	318053300		Seal-oven Door		Appelez-nous	-
*28574	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special		Appelez-nous	-
*28575	3051745		Retainer-hinge Pin 57034000		Appelez-nous	-
*28576	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*28577	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive			Immediately	$ 9.36
*28578	5303321106		Plug-button				$ 11.60
18A	3051658		Bracket-hinge, Main Top Lh		Appelez-nous	-
18B	5301315631		Bracket-hinge, Main Top Rh		Appelez-nous	-
19A	318138500		Pan-burner, Large		Appelez-nous	-
19A	318138501		Pan-burner, Small		Appelez-nous	-
19B	5308003113		Trim Ring-small (not Illustrated)		Appelez-nous	-
19B	5308003114		Trim Ring-large (not Illustrated)		Appelez-nous	-
27A	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
27B	318122500		Support, Terminal Block, (4) (not Illustrated)		Appelez-nous	-
39A	3201576		Handle-drawer		Appelez-nous	-
39B	5303310504		Spacer-deflector, (2) (not Illustrated)		Appelez-nous	-
63A	318024505		Hinge-lower		Appelez-nous	-
63B	318024507		Hinge-top		Appelez-nous	-
