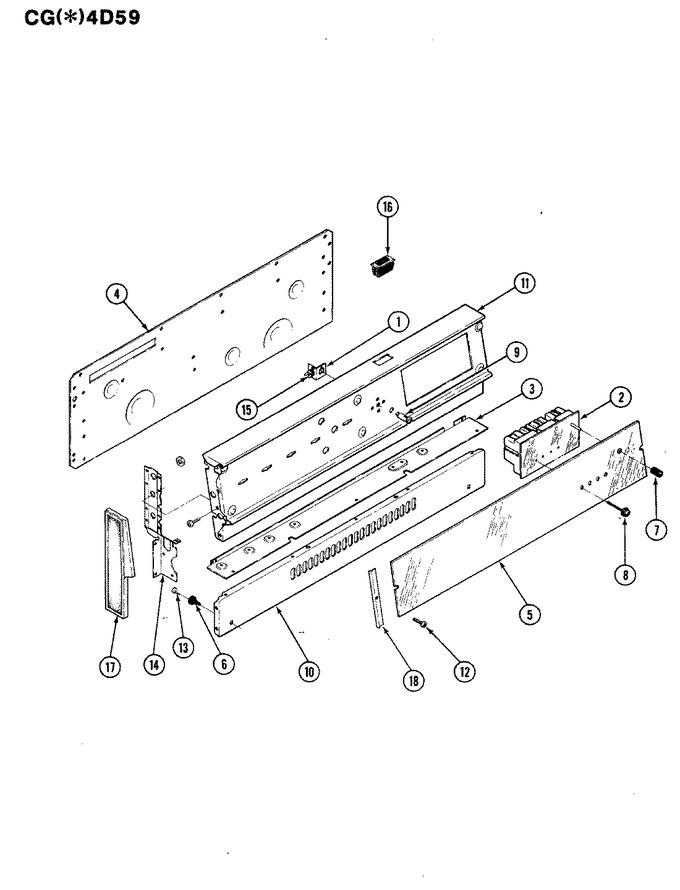

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3801F096-45 | Bracket, H.l. Swit | 1 |
|
- | ||||
| 2 | 7601P123-60 | Clock | 1 |
|
- | ||||
| 3 | 4005F155-80 | Cover, Bottom Bkdg Wire | 1 |
|
- | ||||
| 4 | 4005F161-80 | Cover, Bkgd Wire | 1 |
|
- | ||||
| 5 | 7910P060-60 | Glass, Bkgd | 1 |
|
- | ||||
| 6 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 7 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 8 | 7711P007-60 | Knob, Clock | 1 |
|
- | ||||
| 8 | 7711P171-60 | Knob, Clock (button-blk) | 1 |
|
$ 19.90 | ||||
| 9 | 7407P013-60 | Light, Indicator | 1 |
|
- | ||||
| 10 | 2620W018-90 | + Panel, Bkgd Lower | 1 |
|
- | ||||
| 11 | 2601W199-86 | Panel, Bkgd Hvt Wheat | 1 |
|
- | ||||
| 11 | 2601W199-84 | Panel, Backguard | 1 |
|
- | ||||
| 11 | 2601W199-81 | Panel, Backguard White | 1 |
|
- | ||||
| 12 | 7101P006-60 | Screw, Bkgd Trim Bwn | 1 |
|
- | ||||
| 13 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 14 | 3807F010-80 | Support | 1 |
|
- | ||||
| 14 | 3807F012-80 | Support | 1 |
|
- | ||||
| 15 | 7403P188-60 | Switch | 24 |
|
- | ||||
| 15 | 7403P087-60 | Switch, H.l. Fan | 1-23 |
|
- | ||||
| 16 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 1 |
|
$ 91.35 | ||||
| 17 | 7726P031-60 | Trim, Bkgd End (lt) | 1 |
|
- | ||||
| 17 | 7726P032-60 | Trim, Bkgd End (rt) | 1 |
|
- | ||||
| 18 | 7720P089-60 | Trim, Glass Retainer | 1 |
|
- |
