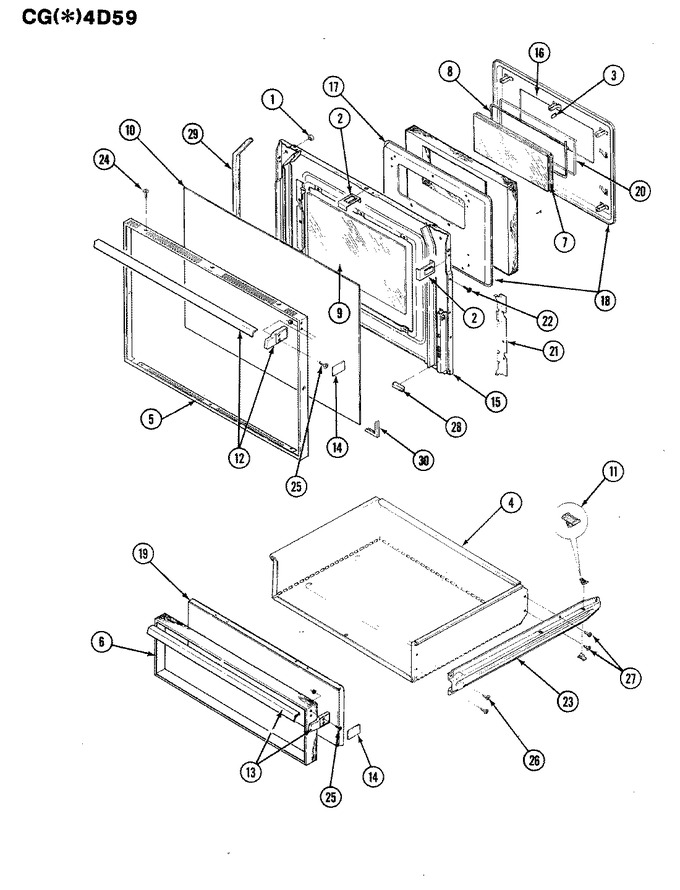

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8003P002-60		Bumper Door (round)	1	Appelez-nous	-
1	3801F115-51		Bracket, Drawer	1	Appelez-nous	-
2	7112P034-60		Clip, Door	1	Appelez-nous	-
3	7112P051-60		Clip, Retainer	1	Appelez-nous	-
4	3405F008-80		Drawer, Service	1	Appelez-nous	-
5	7706P243-60		Frame, Door	1	Appelez-nous	-
6	7706P196-60		Frame, Storage Drawer	1	Appelez-nous	-
7	7902P101-60		Glass, Window Outer	1	Appelez-nous	-
7	7902P287-60		Glass, Window Inner	1	Appelez-nous	-
7	7706P177-60		Frame, Window	1	Appelez-nous	-
8	7201P018-60		Gasket, Window	1	Appelez-nous	-
9	7902P097-60		Glass, Inner	1			$ 63.87
10	7902P276-60		Glass, Door	1	Appelez-nous	-
11	8016P004-60		Glide, Drawer	1	Appelez-nous	-
12	7701P047-60		Handle, Door	1	Appelez-nous	-
14	7728P012-60		Insert, Oven Door Handle	1	Appelez-nous	-
15	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	1			$ 9.89
15	2402W128-15		Lining	1	Appelez-nous	-
16	2410W029-15		Pad, Door	1	Appelez-nous	-
17	2410F016-51		Pad, Inner	1	Appelez-nous	-
18	2410A037-15		Pad, Oven Door	1	Appelez-nous	-
19	2416F027-70		Panel, Storage Door Blk	1	Appelez-nous	-
20	3804F022-45		Retainer	1	Appelez-nous	-
21	3804F051-80		Retainer, Glass	1	Appelez-nous	-
22	7107P017-60		Rivet	1	Appelez-nous	-
23	3406F020-80		Runner, Inner	1	Appelez-nous	-
24	WP7101P126-60		Screw, Frame   (Replaces: 7101P126-60)	1		Immediately	$ 6.85
25	7101P123-60		Screw	1	Appelez-nous	-
26	7101P225-60		Screw, Svc Door	1	Appelez-nous	-
27	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
28	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
29	7208P002-60		Seal	1	Appelez-nous	-
30	8270P051-60		Tape, 2`` X 16`` Reflective	1	Appelez-nous	-
30	8010P045-60		Spacer, Glass Corner	1	Appelez-nous	-
