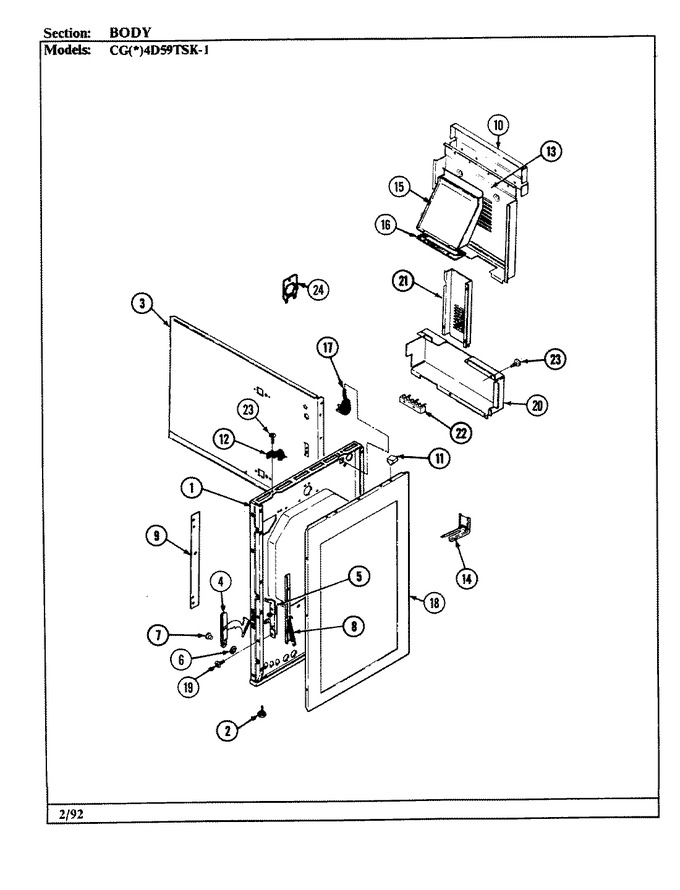

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)				$ 4.29
1	4009W074-80		Lining, Assy Inner Side		Appelez-nous	-
1	8008P012-60		Grommet, Nylon		Appelez-nous	-
1	7103P045-60		Nut, Nylon		Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
2	Y7101P25460		Leg, Leveling		Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
3	4002F165-80		Back, Main		Appelez-nous	-
3	8008P014-60		Grommet, Nylon		Appelez-nous	-
3	8008P012-60		Grommet, Nylon		Appelez-nous	-
4	3420A033-34		Stop, Oven Door		Appelez-nous	-
5	3418A030-34		Hinge Assy. (rt)		Appelez-nous	-
5	8016P008-60		Glide, Oven Door Hinge		Appelez-nous	-
5	3418A029-34		Hinge Assy. (lt)				$ 48.47
6	7112P019-60		Clip, Hinge Pin		Appelez-nous	-
7	7113P002-60		Pin, Hinge				$ 9.05
8	WP7803P058-60		Spring, Oven Door   (Replaces: 7803P058-60)				$ 16.55
9	3601F214-51		Baffle Side Panel		Appelez-nous	-
10	3601F107-51		Baffle, Flue Box Top		Appelez-nous	-
11	8003P011-60		Spacer, Main Top		Appelez-nous	-
12	7112P073-60		Clip, Top Retainer		Appelez-nous	-
13	3601F112-51		Baffle, Flue Box		Appelez-nous	-
14	WP7101P485-60		Screw, Bracket   (Replaces: 7101P289-60)				$ 26.33
14	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F218-51)			Immediately	$ 4.69
15	4006W026-19		Box, Flue Assy		Appelez-nous	-
16	7201P013-60		Gasket		Appelez-nous	-
17	8007P003-60		Bushing, Snap		Appelez-nous	-
17	7401P018-60		Block		Appelez-nous	-
17	7402P024-60		Cord, Power		Appelez-nous	-
18	2618F073-71		Panel, Side (wht)----na		Appelez-nous	-
18	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
18	WP7101P126-60		Screw   (Replaces: 7101P058-60)			Immediately	$ 6.85
19	WP4159193		Screw   (Replaces: 7101P112-60)				$ 4.29
20	4005F396-80		Cover Module		Appelez-nous	-
21	3818F032-80		Channel - Air Duct		Appelez-nous	-
22	7401P015-60		Block, Terminal		Appelez-nous	-
23	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
24	3801F021-45		Bracket		Appelez-nous	-
NI	5120A008-60		Harness Supply		Appelez-nous	-
NI	5195D068-60		Harness Service Plug		Appelez-nous	-
NI	5185D254-60		Harness, Lower		Appelez-nous	-
