SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door


04 - Drawer


05 - Gas Controls (oven)


06 - Gas Controls (top)


07 - Internal Controls


08 - Oven

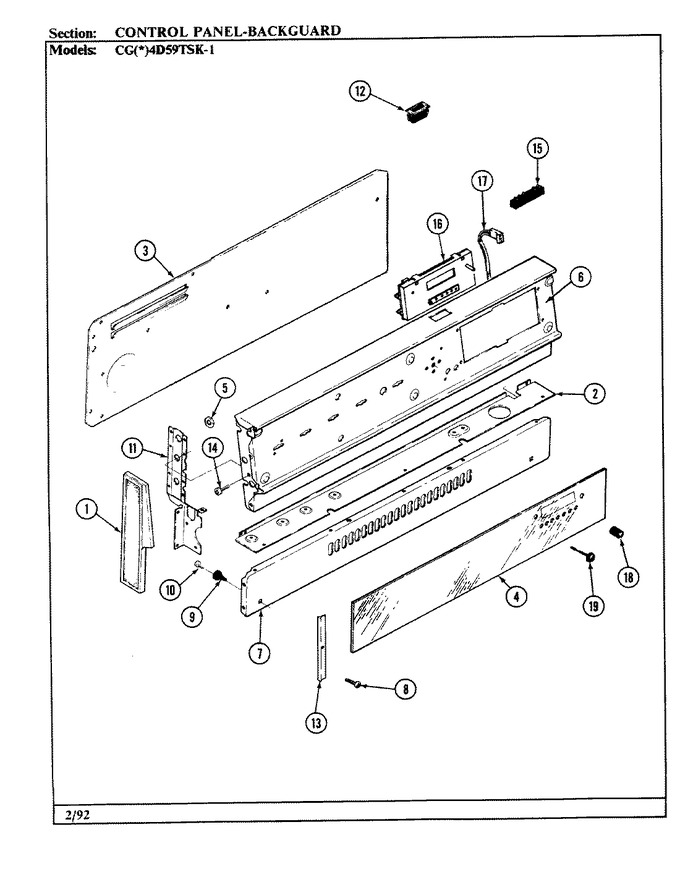

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7726P032-60		Trim, Bkgd End (rt)	01	Appelez-nous	-
1	7726P031-60		Trim, Bkgd End (lt)	01	Appelez-nous	-
2	4005F155-80		Cover, Bottom Bkdg Wire	01	Appelez-nous	-
3	4005F393-80		Cover Bkgd Wire	01	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
3	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	01			$ 6.98
4	7910P133-60		Glass, Bkgd	01	Appelez-nous	-
5	7103P053-60		Nut, Push-on End Cap	01	Appelez-nous	-
6	2601W328-81		Panel, Control (white)	01	Appelez-nous	-
7	2620W053-90		Backguard Panel	01	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
8	7101P008-60		Screw	01	Appelez-nous	-
9	7105P002-60		Support, Main Top	01	Appelez-nous	-
10	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
11	3807F349-51		Support, Bkgd End Rt	01	Appelez-nous	-
11	WPW10068250		Screw   (Replaces: 7101P074-60)	01			$ 3.66
11	WP7101P126-60		Screw   (Replaces: 7101P058-60)	01		Immediately	$ 6.85
11	3807F348-51		Support, Bkgd End Lf	01	Appelez-nous	-
12	7403P067-60		Switch, Rocker (blk)	01			$ 91.35
13	7742P009-60		Trim, Retainer Glass	01	Appelez-nous	-
14	WPW10068250		Screw   (Replaces: 7101P074-60)	01			$ 3.66
15	7401P015-60		Block, Terminal	01	Appelez-nous	-
16	7601P181-60		Clock, Electronic	01	Appelez-nous	-
17	5170P100-60		Harness, Oven Sensor	01	Appelez-nous	-
18	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	01			$ 12.13
19	7711P452-60		Button, Clock Set	01	Appelez-nous	-
19	5180D129-60		Harness Upper	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
