01 - Body (cgx6c5w)
02 - Control Panel
03 - Door/drawer

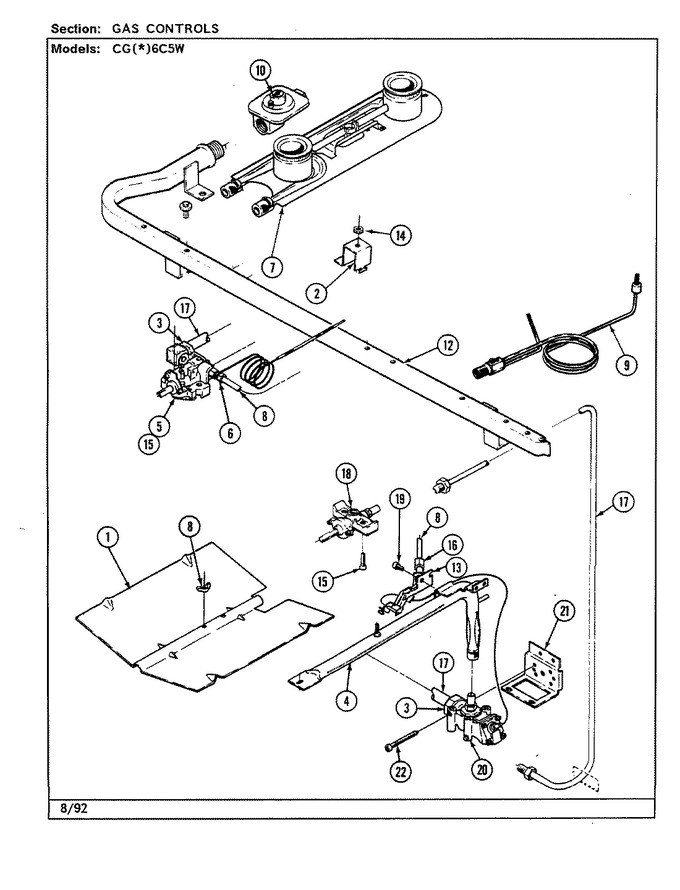

04 - Gas Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 01 |
|
- | ||||
| 2 | 3807F204-34 | Support, Top Pilot | 01 |
|
- | ||||
| 3 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 4 | 7505P065-60 | Burner, Oven | 01 |
|
- | ||||
| 5 | 7515P026-60 | Thermostat | 15 |
|
- | ||||
| 5 | 7515P018-60 | Thermostat | 01 |
|
- | ||||
| 5 | 7101P010-60 | Screw, Control | 15 |
|
- | ||||
| 6 | 1555222 | Nut, Loxit (3/16``) | 01 |
|
- | ||||
| 7 | 3412A004-23 | Uni-burner Assy | 01 |
|
- | ||||
| 8 | 3414F061-44 | Tubing (3/16 X 50``) | 01 |
|
- | ||||
| 9 | 7505P079-60 | Burner, Pilot | 01 |
|
- | ||||
| 10 | 7510P002-60 | Regulator, Pressure | 01 |
|
- | ||||
| 12 | 7513P115-60 | Pipe Manifold | 15 |
|
- | ||||
| 12 | 7513P051-60 | Pipe, Manifold (w/griddle) | 01 |
|
- | ||||
| 13 | 1566267 | Pilot Assy. | 01 |
|
- | ||||
| 14 | 7103P070-60 | Nut, Top Pilot | 01 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 15 | 7101P044-60 | Screw, Valve | 15 |
|
- | ||||
| 16 | 1555261K | Nut & Ferrule (3/16``) | 01 |
|
- | ||||
| 17 | 3414F054-44 | Tubing, 3/8 X 72`` | 01 |
|
- | ||||
| 18 | 7502P009-60 | Valve, Burner | 01 |
|
- | ||||
| 18 | 7502P234-60 | Valve, Burner | 15 |
|
- | ||||
| 19 | WP4159193 | Screw (Replaces: 7101P067-60) | 01 |
|
$ 4.29 | ||||
| 20 | 7501P067-60 | Valve, Oven | 01 |
|
- | ||||
| 21 | 3807F143-34 | Support | 01 |
|
- | ||||
| 22 | 7101P025-60 | Screw | 01 |
|
- | ||||
| NI | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 |
