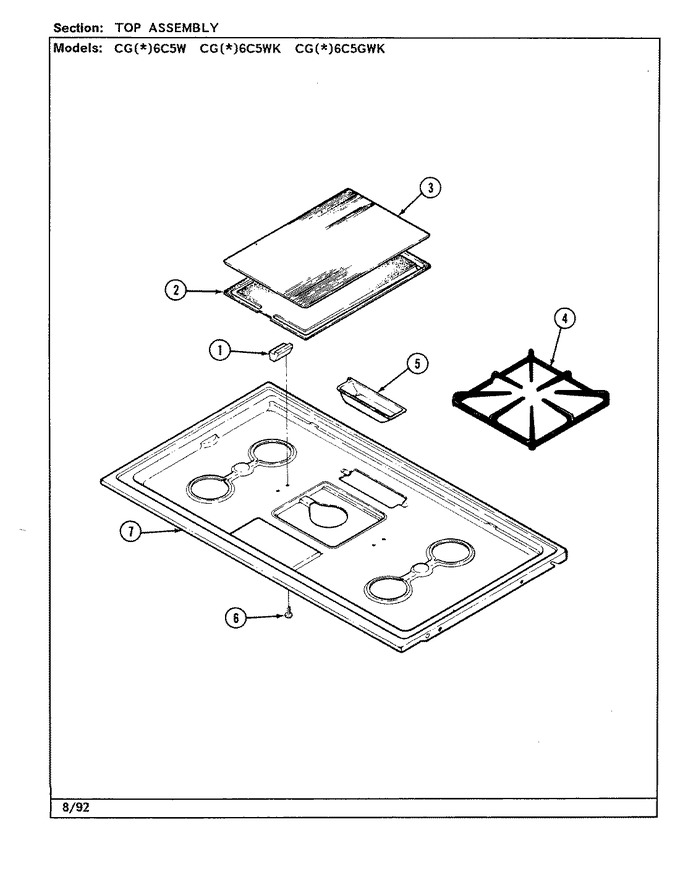

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8004P016-60 | Support, Grate |
|
- | |||||
| 2 | W10116823 | Kit, Griddle |
|
- | |||||
| 3 | 2005F002-30 | Cover, Griddle Stainless |
|
- | |||||
| 4 | 2003W001-00 | Grate |
|
- | |||||
| 5 | 3401F017-23 | Pan, Grease |
|
- | |||||
| 6 | 7101P006-60 | Screw, Bkgd Trim Bwn |
|
- | |||||
| 7 | 2001F007-81 | Top, Main White |
|
- |
