SELECT A DIAGRAM

01 - Cover

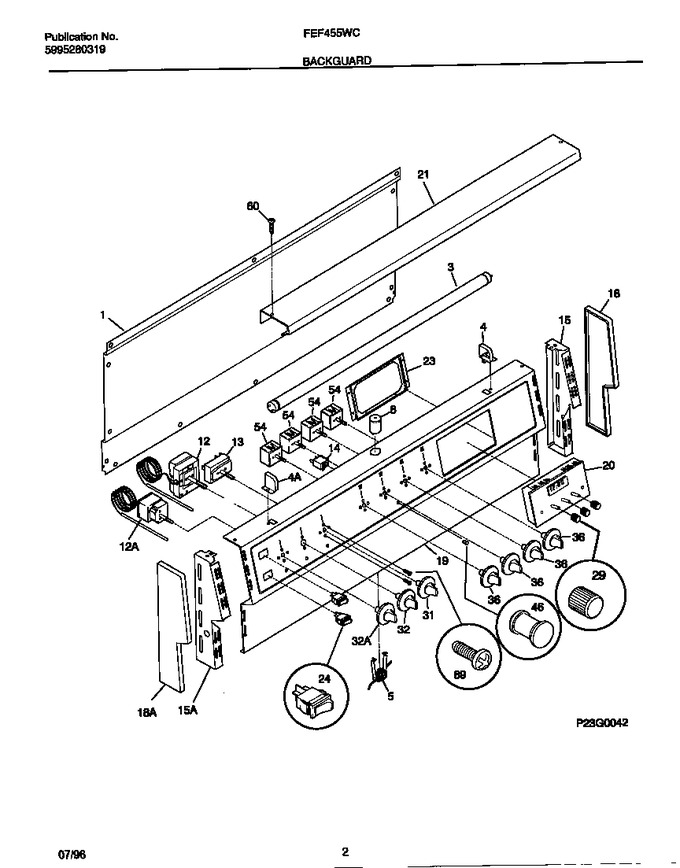

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303304006		Shield-backguard, Rear Wall		Appelez-nous	-
3	5303286690		Lamp-fluorescent, Backguard		Appelez-nous	-
4	5303304542		Receptacle-lamp, Rh		Appelez-nous	-
4	5303304543		Receptacle-lamp, Lh				$ 7.72
5	5303286746		Socket-starter				$ 42.95
6	5308068062		Starter,lamp				$ 30.46
12	5303300188		Thermostat-oven Right				$ 376.43
12	5303311120		Thermostat-oven Left		Appelez-nous	-
13	5303300189		Switch-selector				$ 256.62
15	5303304000		Bracket-endcap, Rh				$ 7.14
15	5303304001		Bracket-endcap, Lh				$ 5.62
18	5303304540		End Cap, Rh		Appelez-nous	-
18	5303304541		End Cap, Lh		Appelez-nous	-
19	318005706		Panel-control, Black		Appelez-nous	-
20	3201540		Clock/timer, 3 Stem		Appelez-nous	-
21	5303304545		Trim-canopy/shield		Appelez-nous	-
23	3201541		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	3201564		Knob-clock		Appelez-nous	-
31	5303300191		Knob-selector		Appelez-nous	-
32	5303300190		Knob-thermostat		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
46	5303271239		Lens-light/lamp, Indicator		Appelez-nous	-
60	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
69	5303323137		Screw, Switch Mtg, (6)   (Replaces: 5303305528)				$ 11.88
14A	3051539		Light/lamp-oven, Indicator				$ 60.53
14B	5303051533		Light-lamp/indicator				$ 53.81
14C	5308012563		Light/lamp, Indicator, 250 V		Appelez-nous	-
54A	5303300157		Switch-surface Unit, Small		Appelez-nous	-
54B	5303300158		Switch-surface Unit, Large		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
