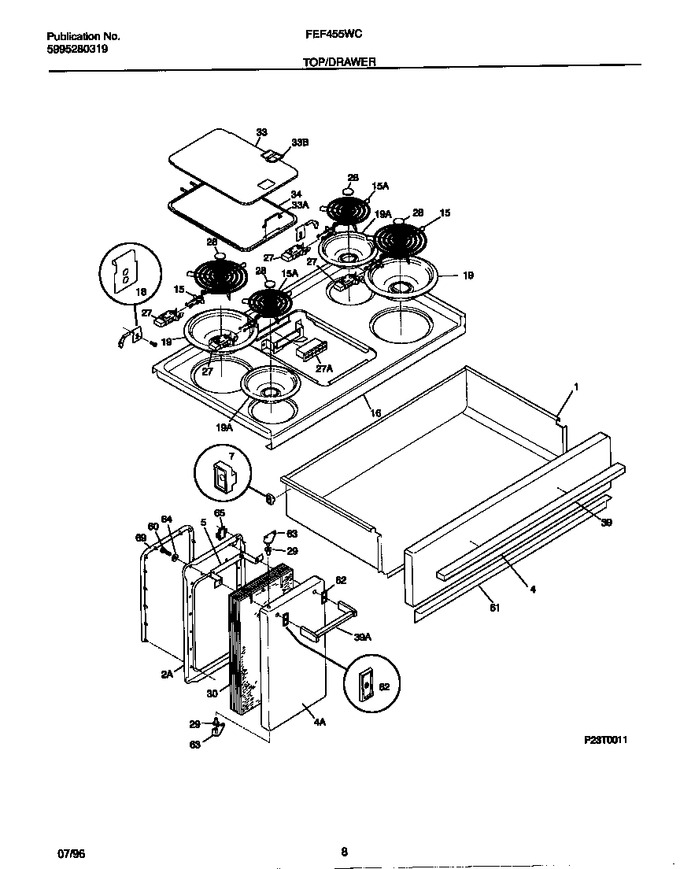

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3202108		Drawer-utility		Appelez-nous	-
2	318048204		Liner-small Door		Appelez-nous	-
4	318009301		Panel-door, Black		Appelez-nous	-
4	3201577		Panel-drawer, Black		Appelez-nous	-
5	318014500		Spacer-handle		Appelez-nous	-
7	5301315217		Glide-drawer		Appelez-nous	-
15	PS12-4BK		Element-surface, Small/6 Inch   (Replaces: 5303309000)			Immediately	$ 35.96
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303309001)			Immediately	$ 44.39
16	5303293761		Main Top, Chrome		Appelez-nous	-
19	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28	5303301461		Medallion, Surface Element		Appelez-nous	-
29	5301306686		Spacer-hinge Pin		Appelez-nous	-
30	5301311649		Insulation-door, Small Oven		Appelez-nous	-
33	5301313051		Handle-cover		Appelez-nous	-
33	3201527		Cover-griddle		Appelez-nous	-
33	08005351		Handle-griddle		Appelez-nous	-
34	5301167935		Griddle		Appelez-nous	-
39	3201576		Handle-drawer		Appelez-nous	-
39	318040601		Handle-door, Black		Appelez-nous	-
60	5303310510		Screw-handle Mtg				$ 14.18
61	318107700		Toeplate		Appelez-nous	-
64	3201899		Washer, Hinge Assy, (4)		Appelez-nous	-
65	3204306		Latch-door, Small		Appelez-nous	-
69	318053300		Seal-oven Door		Appelez-nous	-
*71126	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
18A	3051658		Bracket-hinge, Main Top Lh, With Pin		Appelez-nous	-
18B	5301315631		Bracket-hinge, Main Top Rh, With Pin		Appelez-nous	-
18C	08002868		Screw 10 X 24 X 1/2				$ 14.18
27A	5303292139		Terminal Block, Griddle Element		Appelez-nous	-
27B	5303292140		Terminal (not Illustrated)				$ 35.12
27C	5303311332		Bracket-terminal Mtg, Griddle (not Illustrated)		Appelez-nous	-
62A	3201572		Spacer-handle, (2)		Appelez-nous	-
62B	08002848		Screw, 10-24 X 29/32, Terminal Block (not Illustrated)		Appelez-nous	-
63A	318024501		Hinge-bottom		Appelez-nous	-
63B	318024503		Hinge-top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
