SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Body


07 - Top/drawer


09 - Door

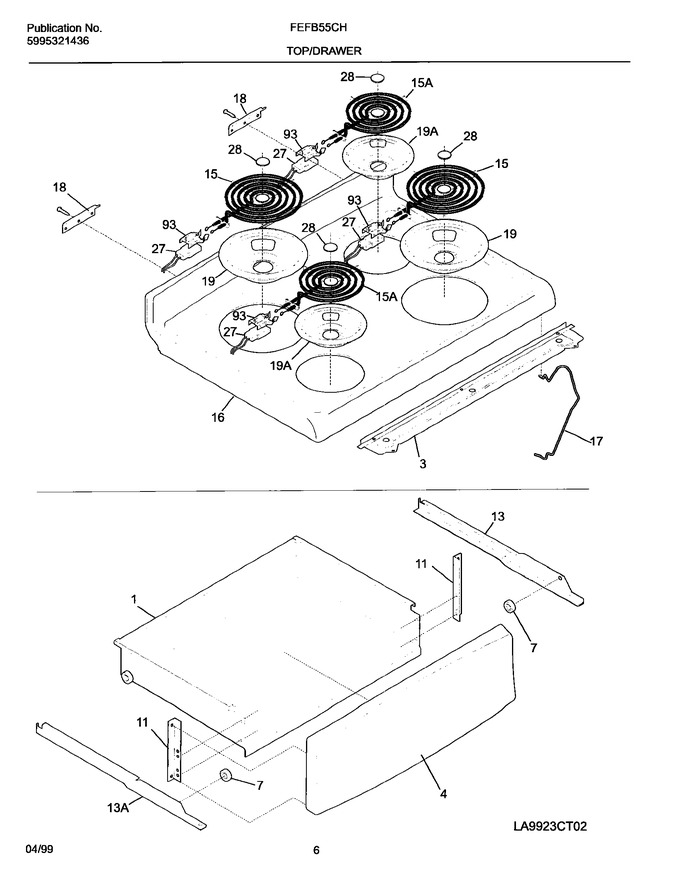

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 318107103)			Immediately	$ 143.39
3	318144320		Support, Maintop		Appelez-nous	-
4	318044301		Panel-drawer,white		Appelez-nous	-
7	318014800		Spacer				$ 16.59
11	318107500		Bracket-support Drawer				$ 21.85
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
16	318065731		Main Top,white		Appelez-nous	-
17	318119100		Rod-main Top				$ 6.67
18	318074400		Hinge-main Top		Appelez-nous	-
19	316048413		Pan-burner   (Replaces: 318067020)			Immediately	$ 9.85
28	5303309002		Medallion, Surface Element		Appelez-nous	-
93	318122501		Bracket-terminal Block		Appelez-nous	-
13A	318018101		Channel-drawer,lh				$ 63.11
19A	316048414		Pan-burner   (Replaces: 318067021)			Immediately	$ 16.11
F15	316442303		Element-surface, 2400w   (Replaces: 318112300)			Immediately	$ 207.45
F15A	PS12-4BK		Element-surface, 1500w   (Replaces: 5303309000)			Immediately	$ 35.96
F27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
NI	5303288566		Screw,6-32 X 5/16   (Replaces: 5303324512)				$ 2.12
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
NI	5304400428		Screw (8-15 X 1/8 )				$ 5.40

    View Diagram in Separate Window       Print Part List
