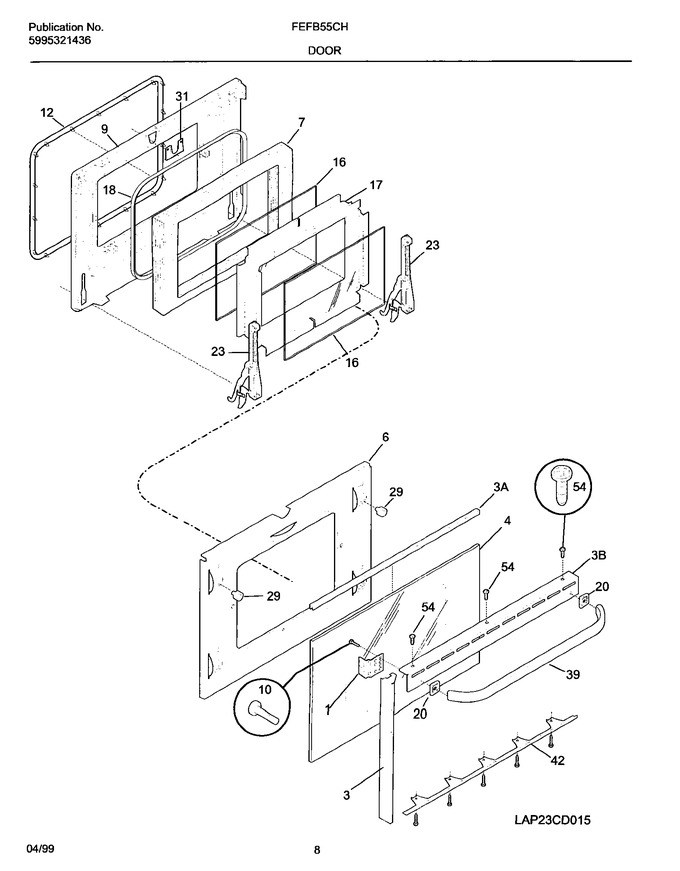

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318043100		Bracket-trim,handle				$ 52.87
3	318049206		Trim-oven, White		Appelez-nous	-
4	318041110		Glass-oven Door,white ,outer		Appelez-nous	-
6	318056802		Shield-wool		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048802		Liner-oven Door		Appelez-nous	-
10	732022890		Screw, 10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053103		Seal-oven Door			Immediately	$ 150.03
16	318041603		Glass-oven Door, Heat Barrier				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-rope		Appelez-nous	-
20	318014301		Spacer-handle,white				$ 48.88
23	5303311215		Hinge		Appelez-nous	-
29	5303310535		Bumper Door		Appelez-nous	-
31	5303310536		Latch-door				$ 30.66
39	316091119		Handle-door, White		Appelez-nous	-
42	5303311194		Trim,oven Door ,white ,lower		Appelez-nous	-
54	316021109		Screw, 8-18 X 1/2, White   (Replaces: 5303317175)			Immediately	$ 27.50
3A	318028900		Trim-oven Door,upper				$ 34.82
3B	318049020		Trim-oven Door, White, Upper				$ 156.82
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	3201899		Washer,hinge Assy		Appelez-nous	-
