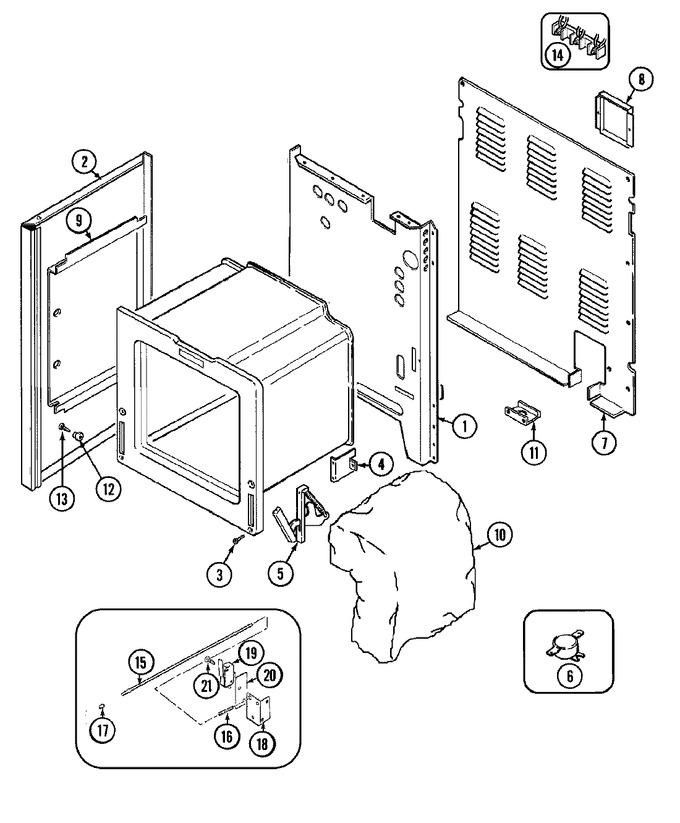

01 - Body
02 - Door/drawer
03 - Internal Controls
04 - Oven/base
05 - Top Assy. (wht)
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F193-80 | Back, Main | 10 |
|
- | ||||
| 2 | 2618F106-71 | Panel, Side (lt-wht) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 8270P078-60 | Tape, Foil (29 1/2``) | 10 |
|
- | ||||
| 2 | 2618F107-71 | Panel, Side (rt-wht) | 10 |
|
- | ||||
| 3 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 4 | 3807F400-51 | Support,oven Rear | 10 |
|
- | ||||
| 5 | 7106P056-60 | Hinge | 10 |
|
- | ||||
| 6 | 7403P307-60 | Thermostat, Snap Acting | 10 |
|
- | ||||
| 7 | 4005F454-51 | Cover, Wire | 10 |
|
- | ||||
| 8 | 4005F427-51 | Cover, Access | 10 |
|
- | ||||
| 9 | 3804F103-51 | Retainer, Insulation (side) | 10 |
|
- | ||||
| 10 | 4804F036-60 | Insulation, Wrap | 10 |
|
- | ||||
| 10 | 74001159 | Insulation, Back | 10 |
|
- | ||||
| 11 | 3605F174-51 | Plate, Conduit Tubing | 10 |
|
- | ||||
| 12 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 13 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 14 | 7401P041-60 | Board, Terminal | 10 |
|
- | ||||
| 15 | 7809P022-60 | Rod, Light Switch | 10 |
|
- | ||||
| 16 | 7803P067-60 | Spring | 10 |
|
- | ||||
| 17 | 8003P012-60 | Bumper | 10 |
|
- | ||||
| 18 | WPY706189 | Screw (8abx3/8-blk) (Replaces: 7101P347-60) | 10 |
|
Immediately | $ 6.47 | |||
| 18 | 3801F354-51 | Bracket, Light Switch | 10 |
|
- | ||||
| 19 | 4874F001-60 | Switch, Door Light | 10 |
|
- | ||||
| 20 | 7003P062-60 | Insulator, Switch | 10 |
|
- | ||||
| 21 | 7101P330-60 | Screw, Switch | 10 |
|
- |
