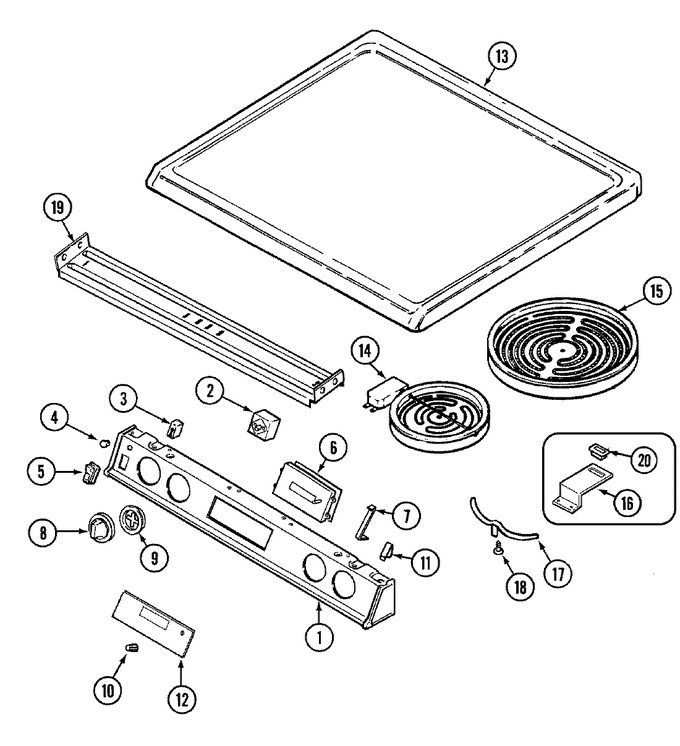

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Door/drawer
03 - Internal Controls
04 - Oven/base
05 - Top Assy. (wht)
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7722P124-60 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 6.26 | |||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 35.10 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 57.78 | |||
| 3 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 10 |
|
$ 106.11 | ||||
| 4 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 10 |
|
$ 6.73 | ||||
| 5 | 7403P200-60 | Switch, Rocker (wht) | 10 |
|
- | ||||
| 6 | 7601P207-60 | Clock | 10 |
|
- | ||||
| 7 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 7 | 3801F222-45 | Bracket, Clock | 10 |
|
- | ||||
| 8 | 7731P081-60 | Knob, Switch (wht) | 10 |
|
- | ||||
| 9 | 7740P067-60 | Bezel, Knob (wht) | 10 |
|
- | ||||
| 10 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P487-60) | 10 |
|
$ 12.13 | ||||
| 11 | 7712P087-60 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 12 | 7403P341-60 | Switch, Membrane (wht) | 10 |
|
- | ||||
| 13 | 74001184 | Top Assy. (wht Top/wht Glass) | 10 |
|
- | ||||
| 13 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 10 |
|
Immediately | $ 9.95 | |||
| 13 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 10 |
|
Immediately | $ 4.86 | |||
| 14 | W10823704 | Element W/receptacle (6``) (Replaces: 7406P074-60) | 10 |
|
Immediately | $ 309.01 | |||
| 14 | Y04000064 | Limiter (6`` Element) | 10 |
|
- | ||||
| 15 | Y04000063 | Limiter (8`` Element) | 10 |
|
- | ||||
| 15 | W10823707 | Element W/receptacle (8``) (Replaces: 7406P073-60) | 10 |
|
Immediately | $ 316.13 | |||
| 16 | 3801F312-45 | Bracket, Indicator Light | 10 |
|
- | ||||
| 17 | 8004P015-60 | Support, Element | 10 |
|
- | ||||
| 18 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 10 |
|
$ 6.98 | ||||
| 19 | 3807F390-45 | Support, Element | 10 |
|
- | ||||
| 20 | 7407P098-60 | Light, Indicator | 10 |
|
- | ||||
| NI | 5170P138-60 | Harness, Sensor/lock | 10 |
|
- | ||||
| NI | 5175D076-60 | Harness, Cooktop To Switch | 10 |
|
- | ||||
| NI | 8111P025-60 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- | ||||
| NI | 5170P147-60 | Harness, Control To Relay | 10 |
|
- | ||||
| NI | 5195D116-60 | Harness, Ctl Panel | 10 |
|
- |
