SELECT A DIAGRAM

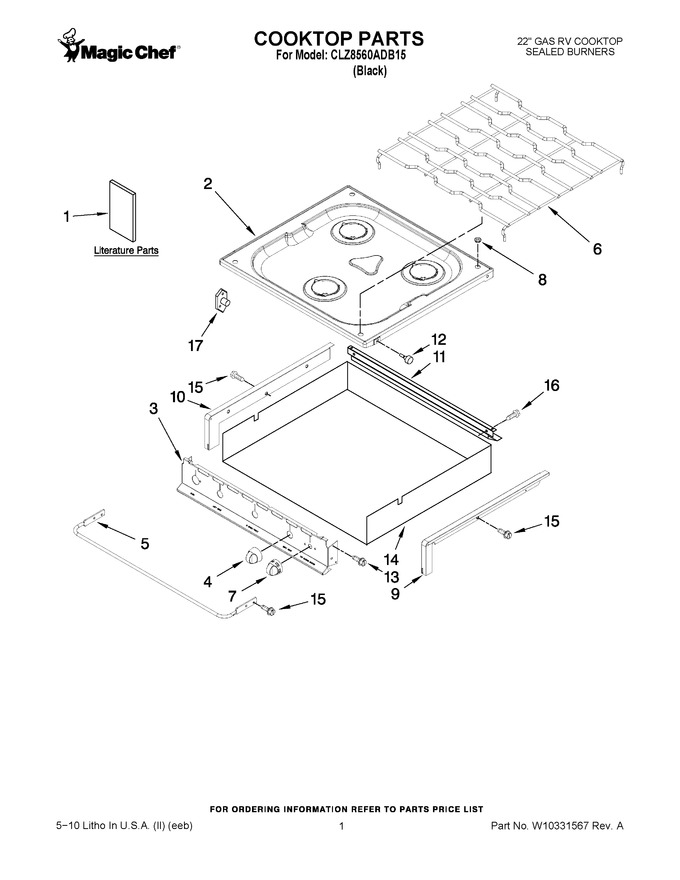

01 - Cooktop Parts
02 - Manifold Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8110P274-60 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8101P573-60 | Instructions Installation |
|
- | |||||
| 2 | 2001F302-09 | Cooktop (black) |
|
$ 162.68 | |||||
| 3 | 2616F318-70 | Panel, Manifold |
|
- | |||||
| 4 | 74003942 | Knob, Burner (3) (front) (Replaces: 7733P199-60) |
|
$ 17.80 | |||||
| 4 | 7733P200-60 | Knob, Burner (3) (lr, Rr) |
|
- | |||||
| 5 | 3609F006-70 | Guard, Fabric |
|
- | |||||
| 6 | 7518P418-60 | Grate, Burner |
|
$ 27.99 | |||||
| 7 | 74003944 | Knob, Ignitor (Replaces: 7739P117-60) |
|
Immediately | $ 15.89 | ||||
| 8 | WPW10308285 | Bushing, Grate (Replaces: W10308285) |
|
$ 6.98 | |||||
| 9 | 3608W051-70 | Trim, Top Right |
|
- | |||||
| 10 | 3608W052-70 | Trim, Top Left |
|
- | |||||
| 11 | 3608F074-70 | Trim, Top Rear |
|
- | |||||
| 12 | 8003P008-60 | Bumper |
|
- | |||||
| 13 | 7101P229-60 | Screw |
|
- | |||||
| 14 | 4011W355-51 | Box, Burner |
|
- | |||||
| 15 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| 15 | WPW10068250 | Screw (Replaces: 7101P141-60) |
|
$ 3.66 | |||||
| 16 | WP98008545 | Screw (Replaces: 7101P633-60) |
|
$ 15.94 | |||||
| 17 | 7103P109-60 | T-nut |
|
- |
