01 - Cooktop Parts

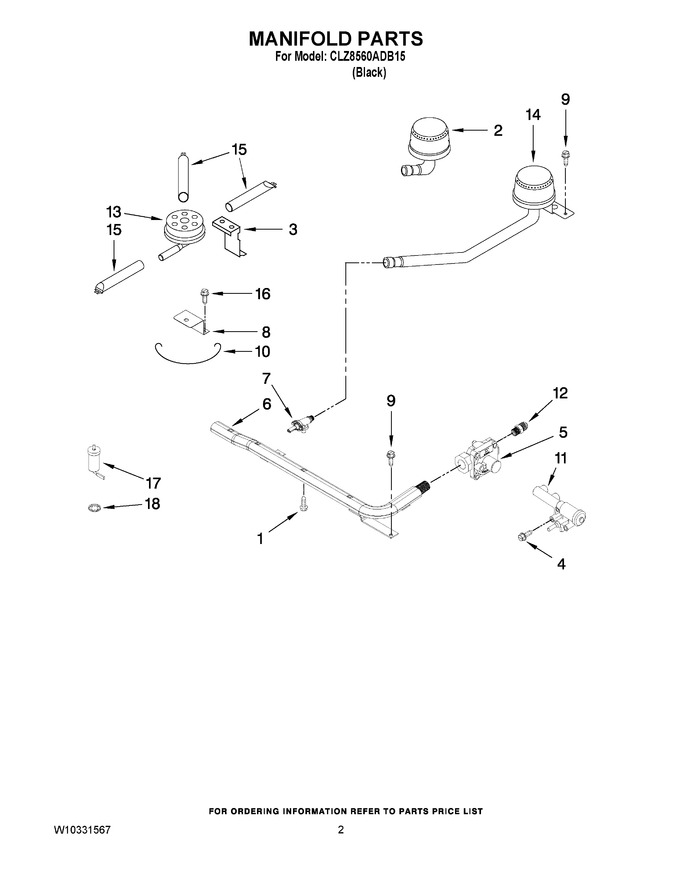

02 - Manifold Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P639-60 | Screw |
|
$ 5.53 | |||||
| 2 | 7505P263-60 | Burner, Front |
|
- | |||||
| 3 | 3604F211-45 | Shield |
|
- | |||||
| 4 | WPY706189 | Screw (Replaces: 7101P347-60) |
|
Immediately | $ 6.47 | ||||
| 5 | 7510P078-60 | Regulator |
|
- | |||||
| 6 | 7513P476-60 | Pipe, Manifold |
|
- | |||||
| 7 | 7502P523-60 | Valve, Burner (lr, Rr) |
|
- | |||||
| 7 | 7502P524-60 | Valve, Burner (front) |
|
- | |||||
| 8 | 3807F462-45 | Support, Burner |
|
- | |||||
| 9 | 7101P229-60 | Screw |
|
- | |||||
| 10 | 7112P068-60 | Clip |
|
- | |||||
| 11 | 74002413 | Ignitor, Piezo (Replaces: 7432P085-60) |
|
$ 160.72 | |||||
| 12 | 7507P280-60 | Fitting, Union |
|
- | |||||
| 13 | 7506P154-60 | Cup/tube, Assembly |
|
$ 96.64 | |||||
| 14 | 7505P265-60 | Burner, Rear Left |
|
- | |||||
| 14 | 7505P264-60 | Burner, Rear Right |
|
- | |||||
| 15 | 7506P152-60 | Extension, Tubing (front) |
|
- | |||||
| 15 | 7506P153-60 | Extension, Tubing (rear) |
|
- | |||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 6.85 | ||||
| 17 | 7432P077-60 | Ignitor, Top |
|
$ 26.53 | |||||
| 18 | 7104P002-60 | Clip, Ignitor |
|
- |
