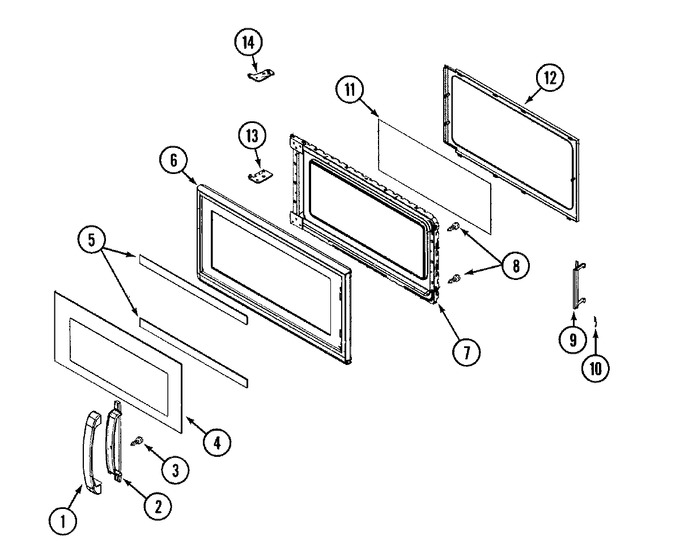

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP56001139 | Handle, Door (outer-wht) (Replaces: 56001139) | 10 |
|
$ 143.32 | ||||
| 2 | WP56001136 | Handle, Door (inner-wht) (Replaces: 56001136) | 10 |
|
$ 138.77 | ||||
| 3 | WP56001173 | Screw (Replaces: 56001173) | 10 |
|
$ 1.53 | ||||
| 4 | 56001124 | Glass, Door (outer-wht) | 10 |
|
- | ||||
| 5 | 12001463 | Tape, Door Glass | 10 |
|
- | ||||
| 6 | 56001130 | Frame, Door (wht) | 10 |
|
- | ||||
| 7 | 56001127 | Lining, Door (wht) | 10 |
|
- | ||||
| 8 | 56001120 | Screw | 10 |
|
- | ||||
| 9 | 56001065 | Hook, Latch | 10 |
|
$ 5.04 | ||||
| 10 | 56001066 | Spring, Hook | 10 |
|
- | ||||
| 11 | 56001121 | Screen, Door (inner) | 10 |
|
- | ||||
| 12 | 56001132 | Gasket (blk) | 10 |
|
- | ||||
| 13 | 56001067 | Hinge (lower) | 10 |
|
- | ||||
| 13 | 56001149 | Screw | 10 |
|
- | ||||
| 14 | 56001068 | Hinge (upper) | 10 |
|
- | ||||
| 14 | 56001149 | Screw | 10 |
|
- |
