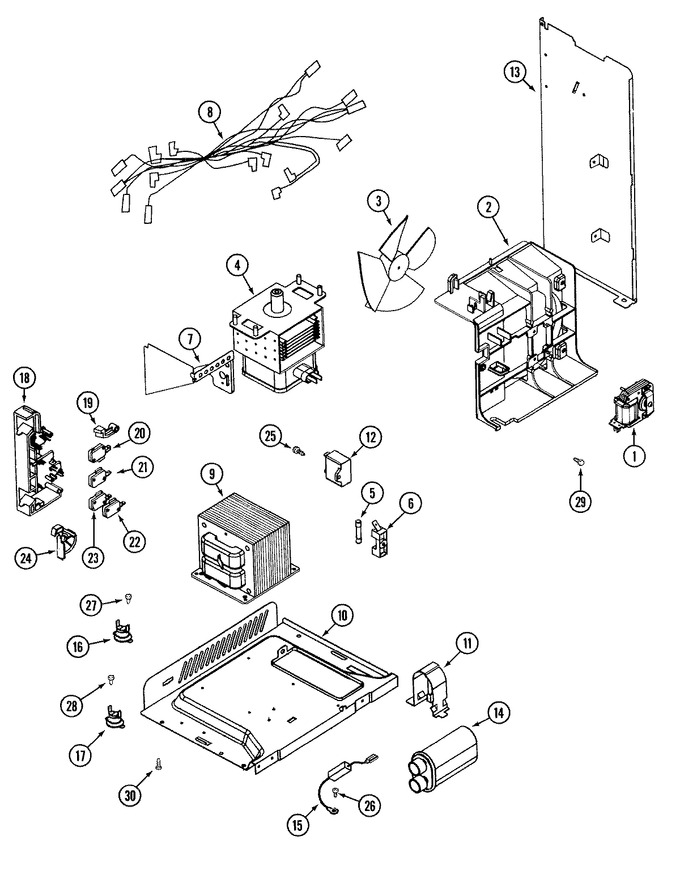

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56001112		Motor, Fan	10	Appelez-nous	-
1	715485		Screw	10	Appelez-nous	-
2	56001111		Guide, Wind	10	Appelez-nous	-
2	56001149		Screw	10	Appelez-nous	-
3	56001026		Fan, Blade	10	Appelez-nous	-
4	56001103		Magnetron	10	Appelez-nous	-
5	ABC20		Fuse (20 Amp)   (Replaces: 51001303)	10		Immediately	$ 10.31
6	56001110		Holder, Fuse	10	Appelez-nous	-
7	56001102		Filter, Lamp	10	Appelez-nous	-
7	56001149		Screw	10	Appelez-nous	-
8	56001175		Harness, Main Wire	10	Appelez-nous	-
9	56001108		Transformer (hv)	10	Appelez-nous	-
10	56001107		Base (rt)	10	Appelez-nous	-
11	56001106		Holder, Capacitor	10	Appelez-nous	-
11	56001149		Screw	10	Appelez-nous	-
12	56001109		Capacitor (running)	10	Appelez-nous	-
13	56001113		Guide, Air (outlet)	10	Appelez-nous	-
14	56001105		Capacitor (hv)	10	Appelez-nous	-
15	WPR9800486		Diode (hv)   (Replaces: 56001030)	10			$ 26.79
16	56001140		Thermostat	10			$ 9.55
17	56001104		Thermostat	10	Appelez-nous	-
18	56001097		Bracket, Switch	10	Appelez-nous	-
18	56001120		Screw	10	Appelez-nous	-
19	56001098		Lever, Switch	10	Appelez-nous	-
20	WP56001036		Switch, Primary   (Replaces: 56001036)	10			$ 74.84
21	56001100		Switch, Micro-monitor	10			$ 10.64
22	56001037		Switch, Secondary	10			$ 16.47
23	WP56001036		Switch, Primary/secondary   (Replaces: 56001099)	10			$ 74.84
24	56001101		Lever, Lock	10	Appelez-nous	-
25	56001120		Screw	10	Appelez-nous	-
26	56001153		Screw	10	Appelez-nous	-
27	56001153		Screw	10	Appelez-nous	-
28	56001153		Screw	10	Appelez-nous	-
29	56001149		Screw	10	Appelez-nous	-
30	56001149		Screw	10	Appelez-nous	-
