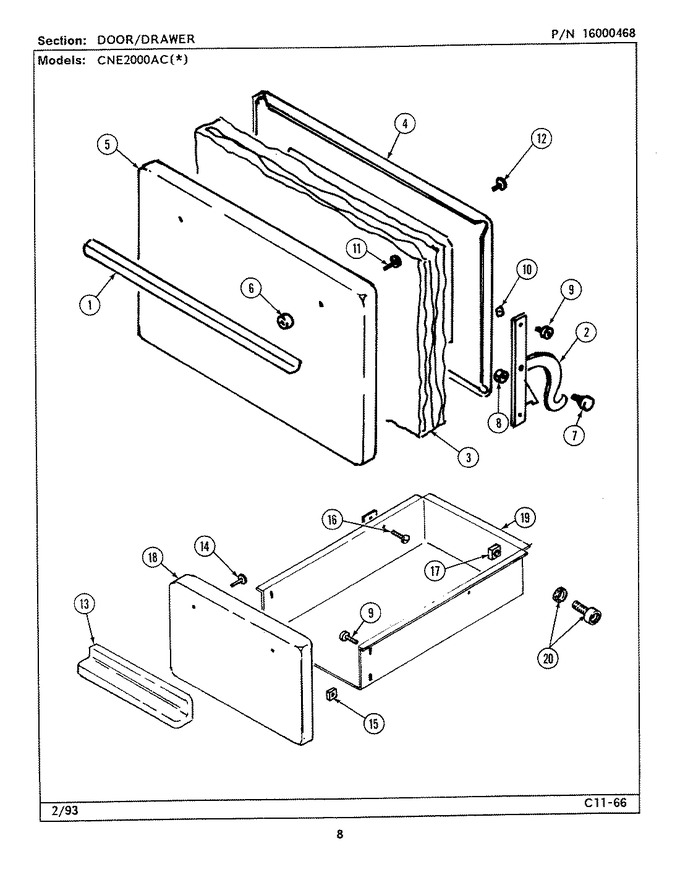

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7701P050-60		Handle, Door (chr)	10	Appelez-nous	-
2	3418A047-34		Hinge, Door (rt)	10	Appelez-nous	-
2	3418A046-34		Hinge, Door (lt)	10	Appelez-nous	-
3	7002P102-60		Insulation, Oven Door	10	Appelez-nous	-
4	2402W102-19		Lining, Door	10	Appelez-nous	-
5	2401W059-71		Panel, Oven Door (wht)	10	Appelez-nous	-
6	8010P029-60		Spacer, Door Handle	10	Appelez-nous	-
7	7118P009-60		Bolt, Shoulder	10	Appelez-nous	-
8	W10080180		Nut Lock   (Replaces: 7103P072-60)	10			$ 12.13
9	WP7101P072-60		Screw   (Replaces: 7101P072-60)	10			$ 6.77
10	W10080180		Nut   (Replaces: 7103P034-60)	10			$ 12.13
11	7101P248-60		Screw, Handle	10	Appelez-nous	-
12	WP7101P126-60		Screw   (Replaces: 7101P061-60)	10		Immediately	$ 6.85
13	7701P049-60		Handle Door	10	Appelez-nous	-
14	74002481		Screw, Handle   (Replaces: 7101P283-60)	10			$ 5.82
15	M0282009		Nut   (Replaces: 7103P064-60)	10			$ 12.06
16	WP4159193		Screw   (Replaces: 7101P115-60)	10			$ 4.29
17	7103P118-60		Nut	10	Appelez-nous	-
18	2403W017-71		Panel, Drawer (wht)	10	Appelez-nous	-
19	3405W010-80		Drawer, Utility	10	Appelez-nous	-
20	8014P009-60		Bearing, Broiler Rol	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
