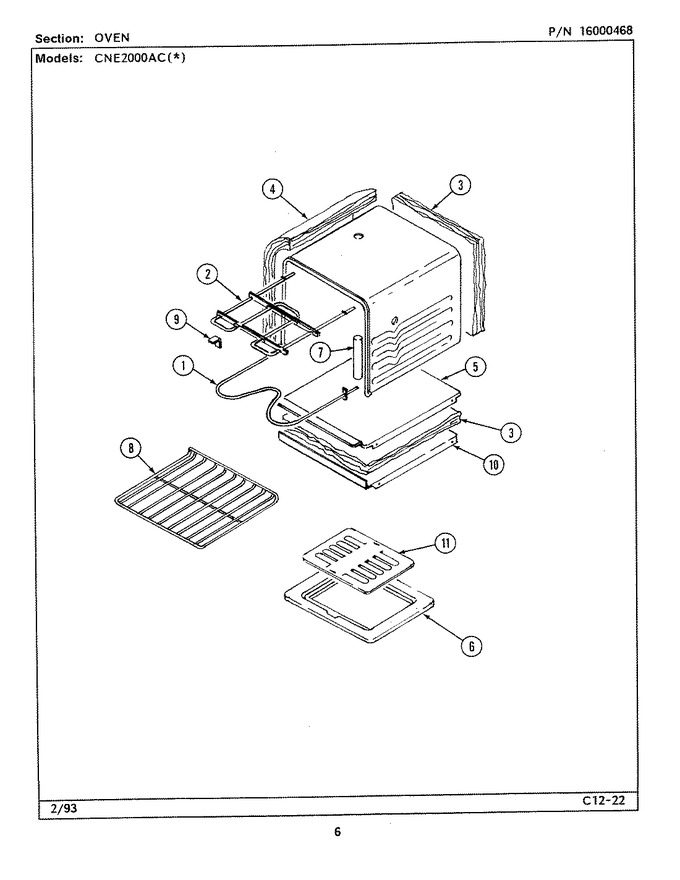

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P287-60 | Screw, Metal Grounding | 10 |
|
$ 12.03 | ||||
| 1 | WP74010761 | Element, Bake (Replaces: 7406P041-60) | 10 |
|
$ 108.93 | ||||
| 2 | 7406P044-60 | Element, Broil | 10 |
|
- | ||||
| 3 | 7002P091-60 | Insulation, Oven Back | 10 |
|
- | ||||
| 4 | 7002P119-60 | Insulation, Wrap | 10 |
|
- | ||||
| 5 | 2205F013-19 | Bottom, Oven | 10 |
|
- | ||||
| 6 | 4396923 | Pan, Broiler (Replaces: 3401F010-23) | 10 |
|
Immediately | $ 52.04 | |||
| 7 | 3414F084-45 | Tube, Vent | 10 |
|
- | ||||
| 8 | 7801P019-60 | Rack, Oven | 10 |
|
- | ||||
| 9 | 3807F253-51 | Support, Broil Element | 10 |
|
- | ||||
| 10 | 3807F285-51 | Support, Insulation | 10 |
|
- | ||||
| 11 | 3413F007-19 | Insert Pan | 10 |
|
- |
