01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System

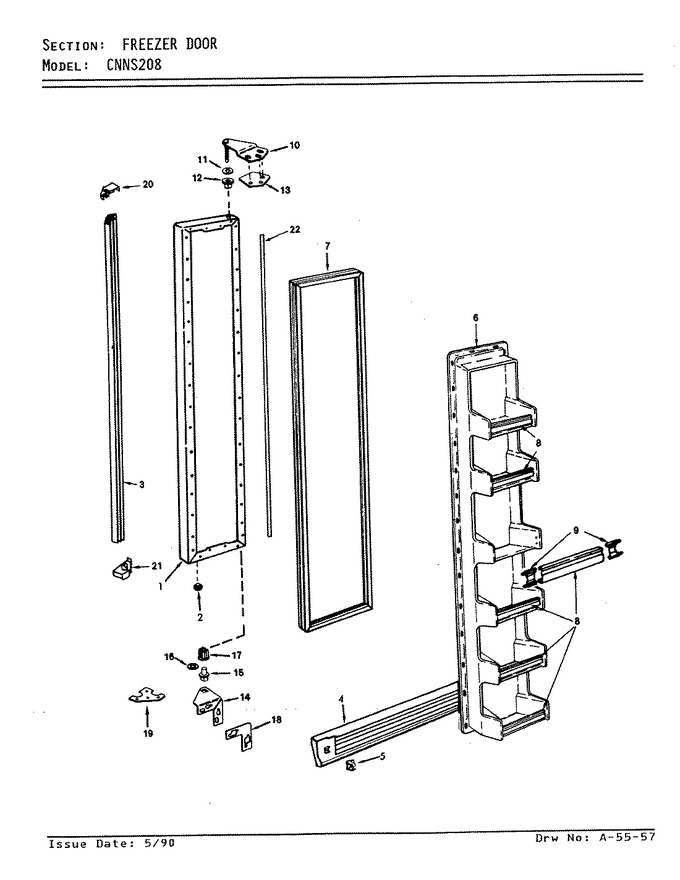

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	55587-35-WW		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56835-39		Handle		Appelez-nous	-
4	56477-6		Kickplate		Appelez-nous	-
5	52854-3		Clip, Kickplate		Appelez-nous	-
5	WP489478		Screw, Kickplate Mtg.   (Replaces: 9986-101)				$ 6.98
6	65275-5		Screw		Appelez-nous	-
6	59433-221		Inner Panel		Appelez-nous	-
7	66929-16		Gasket		Appelez-nous	-
8	WP61003045		Trim, Door Shelf   (Replaces: 65151-293)				$ 129.55
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
10	53709-18		Door Hinge, Upper		Appelez-nous	-
11	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
12	66036-1		Bushing,top/center Hinge		Appelez-nous	-
13	65031-1		Shim, Upper Hinge		Appelez-nous	-
14	60630-10		Hiner, Lower (chrome)				$ 26.18
14	403062-801		Screw		Appelez-nous	-
15	53672-1		Pin, Lower Hinge		Appelez-nous	-
16	54233-1		Washer				$ 7.71
17	66034-1		Bushing, Lower Hinge				$ 19.76
18	60626-1		Shim, Lower Hinge		Appelez-nous	-
19	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
20	57947-1		End Cap		Appelez-nous	-
21	57947-2		End Cap		Appelez-nous	-
22	402100-1		Screw		Appelez-nous	-
22	402077-7		Screw		Appelez-nous	-
22	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
22	65772-27		Trim		Appelez-nous	-
22	420063-1		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
