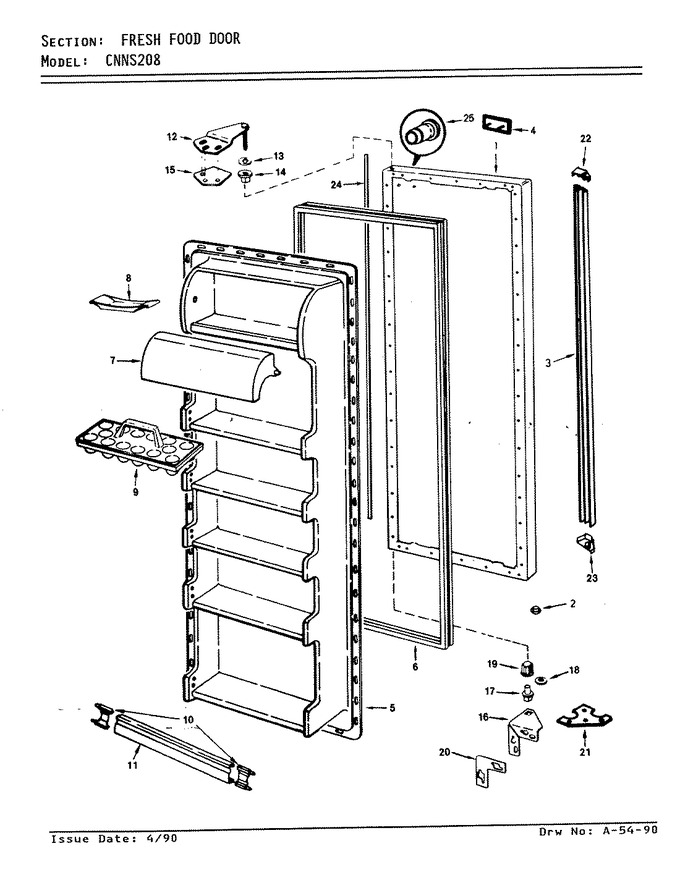

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	55587-34-WW		Outer Panel		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	56835-39		Handle		Appelez-nous	-
4	66986-2		Bezel, Nameplate		Appelez-nous	-
5	65275-5		Screw		Appelez-nous	-
5	65944-14		Liner, Door		Appelez-nous	-
6	53712-7		Gasket		Appelez-nous	-
7	66184-345		Door, Dairy		Appelez-nous	-
8	29936-2		Tray, Butter		Appelez-nous	-
9	60066-9		Tray, Egg		Appelez-nous	-
10	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
11	WP61003045		Trim, Door Shelf   (Replaces: 65151-294)				$ 129.55
12	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
12	53709-18		Door Hinge, Upper		Appelez-nous	-
13	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
14	66036-1		Bushing,top/center Hinge		Appelez-nous	-
15	65031-1		Shim, Upper Hinge		Appelez-nous	-
16	60630-12		Hinge, Lower		Appelez-nous	-
16	403062-801		Screw		Appelez-nous	-
17	53672-1		Pin, Lower Hinge		Appelez-nous	-
18	54233-1		Washer				$ 7.71
19	66034-1		Bushing, Lower Hinge				$ 19.76
20	60626-1		Shim, Lower Hinge		Appelez-nous	-
21	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	57947-1		End Cap		Appelez-nous	-
23	57947-2		End Cap		Appelez-nous	-
24	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
24	65772-27		Trim		Appelez-nous	-
24	420063-1		Washer		Appelez-nous	-
24	402100-1		Screw		Appelez-nous	-
24	402077-1		Screw, End Cap		Appelez-nous	-
25	65211-1		Retainer, Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
