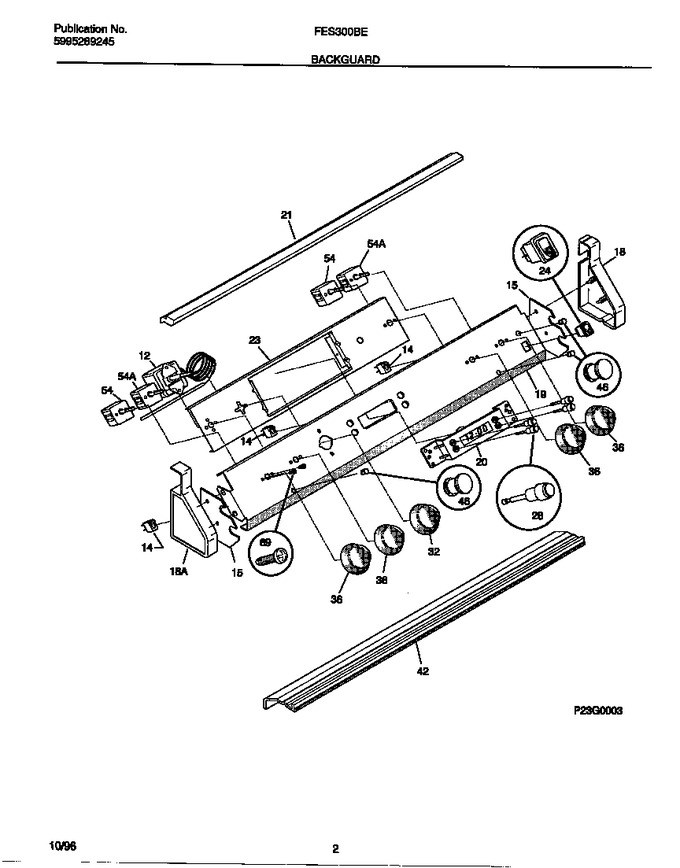

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303311120		Thermostat-oven		Appelez-nous	-
12	5303311124		Screw-thermostat, (2) (not Illustrated)		Appelez-nous	-
14	5303051533		Light-lamp/indicator				$ 53.81
14	3051539		Light/lamp-oven, Indicator				$ 60.53
15	5303311123		Support-backguard, (2)		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	5303311121		Panel-control		Appelez-nous	-
20	316065400		Clock/timer		Appelez-nous	-
21	318027800		Trim-backguard, Top		Appelez-nous	-
23	318015001		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
24	5303304692		Plate, Backup, Light Switch (not Illustrated)		Appelez-nous	-
28	5303311122		Button-clock		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black		Appelez-nous	-
42	318106900		Trim-vent, Black		Appelez-nous	-
46	5308006417		Lens-light / Lamp, Indicator				$ 19.06
54	318120501		Switch-surface Unit				$ 244.13
54	5500-200		Switch-surface Unit, Large, (2)   (Replaces: 5303311186)			Immediately	$ 54.85
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (6)		Appelez-nous	-
*65840	5303323137		Screw, Switch Mtg, (2)   (Replaces: 5303305528)				$ 11.88
*65841	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
