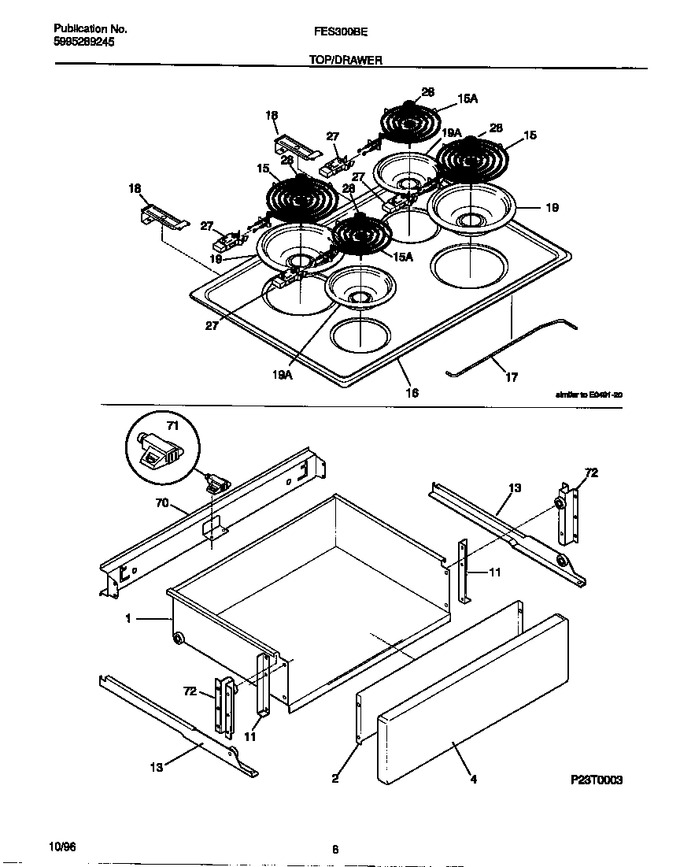

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
2	318108000		Liner, Drawer		Appelez-nous	-
4	5303311178		Panel-drawer, Black		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
15	5303301460		Element-surface, Large		Appelez-nous	-
15	5303301459		Element-surface, Small		Appelez-nous	-
16	5303051802		Main Top, Chrome		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048414		Pan-surface Element, Small / 6 Inch   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
27	08002848		Screw, 10-24 X 29/32, Terminal Block (not Illustrated)		Appelez-nous	-
28	5303301461		Medallion, Surface Element		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
*65848	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*65849	08011955		Screw, Pan Head, 10-24 X 3/8, Square Drive			Immediately	$ 9.36
*65850	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
