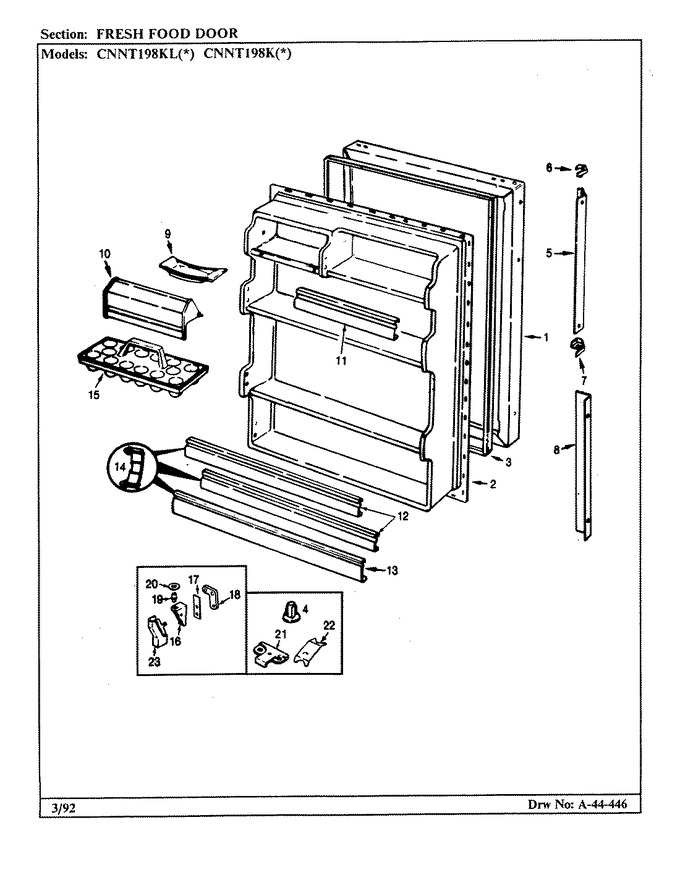

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68473-4-AM		Panel, Outer (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68887-30		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
4	55782-6		Plug Button (almond)		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
5	57769-30		Door Handle		Appelez-nous	-
6	57948-1		End Cap		Appelez-nous	-
7	402077-7		Screw		Appelez-nous	-
7	66799-1		Achor, Screw		Appelez-nous	-
7	57948-2		End Cap		Appelez-nous	-
8	65244-2		Handle Trim		Appelez-nous	-
9	29936-2		Tray, Butter		Appelez-nous	-
10	69058-3		Door, Dairy		Appelez-nous	-
11	WP61003045		Trim, Door Shelf   (Replaces: 65151-287)				$ 129.55
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-335)				$ 129.55
14	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
15	60066-1		Tray, Egg		Appelez-nous	-
16	68975-2		Hinge, Lower		Appelez-nous	-
16	65275-51		Screw, Lower Hinge		Appelez-nous	-
17	69031-1		Shim		Appelez-nous	-
18	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
18	65275-59		Screw		Appelez-nous	-
19	68977-1		Pin, Hinge		Appelez-nous	-
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
21	65275-48		Screw		Appelez-nous	-
21	68987-1		Stop, Door		Appelez-nous	-
22	56209-3		Clip, Stop Screw		Appelez-nous	-
23	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
