01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (imktm10)


06 - Shelves & Accessories


07 - Unit Compartment & System

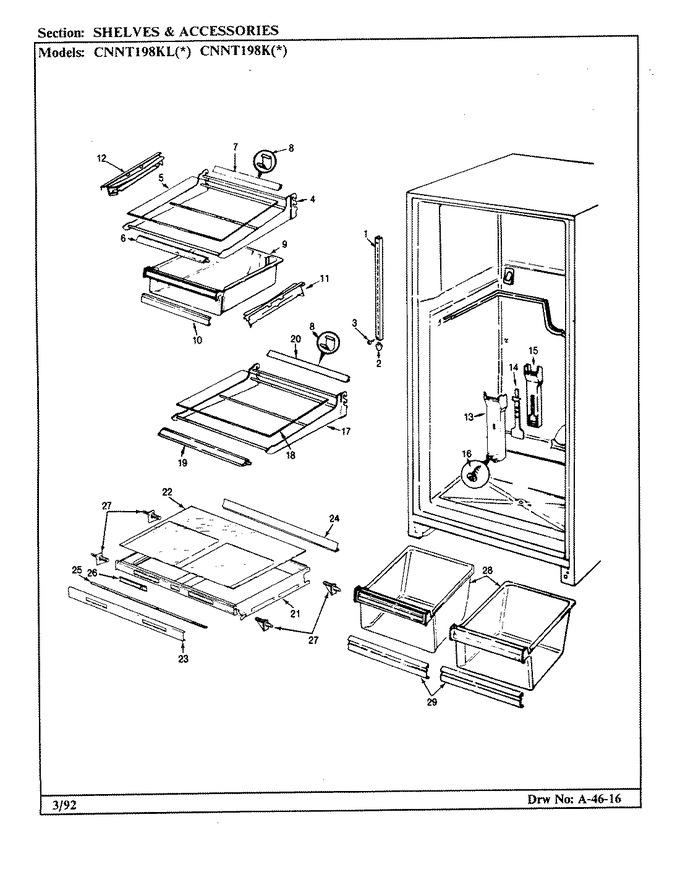

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-4		Support		Appelez-nous	-
1	60096-5		Support		Appelez-nous	-
1	60096-6		Support		Appelez-nous	-
2	60340-1		End Cap, Center Rail		Appelez-nous	-
3	400037-1		Screw		Appelez-nous	-
4	60570-13		Frame, Shelf		Appelez-nous	-
5	66604-30		Shelf		Appelez-nous	-
6	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
7	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
8	66333-1		Clip, Shelf Trim		Appelez-nous	-
9	66523-24		Pan, Meat		Appelez-nous	-
10	66230-13		Trim		Appelez-nous	-
11	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
12	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
13	60094-21		Tunnel		Appelez-nous	-
14	60093-2		Damper, Air Tunnel		Appelez-nous	-
15	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
16	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
17	60570-13		Frame, Shelf		Appelez-nous	-
18	66604-23		Glass, Cantilever Split Shelf		Appelez-nous	-
19	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
20	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
21	68735-1		Shelf, Crisper		Appelez-nous	-
22	68743-13		Shelf, Crisper		Appelez-nous	-
23	68744-4		Trim		Appelez-nous	-
24	68798-1		Trim, Crisper Shelf (rear)		Appelez-nous	-
25	68797-1		Seal		Appelez-nous	-
26	68742-2		Slide, Control		Appelez-nous	-
27	68836-1		Stud, Crisper Support		Appelez-nous	-
28	68222-547		Pan, Crisper		Appelez-nous	-
29	66230-14		Trim		Appelez-nous	-
