SELECT A DIAGRAM

01 - Cover

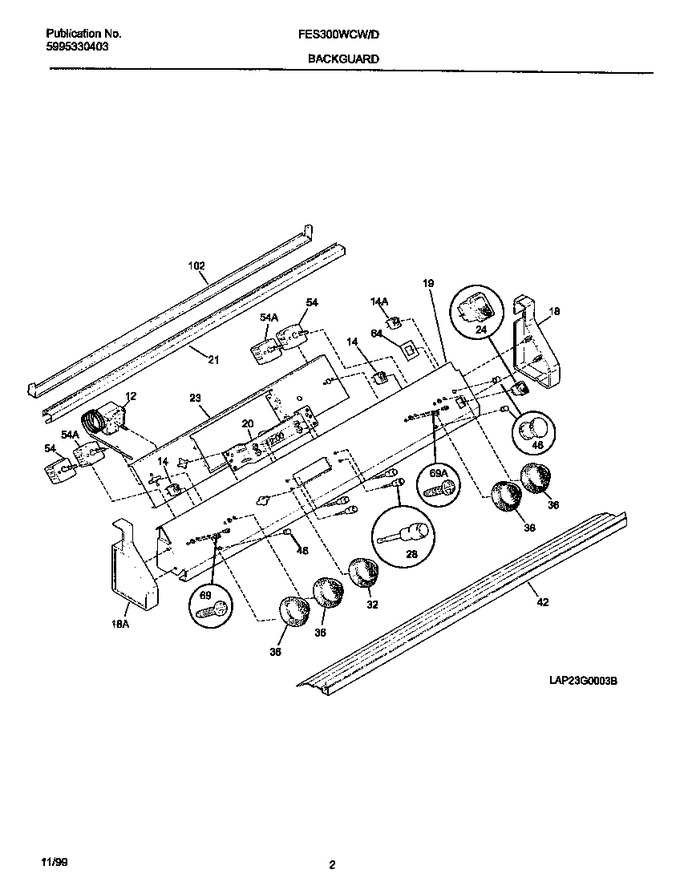

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	6700G0001		Thermostat-oven   (Replaces: 5303311369)			Immediately	$ 295.97
14	3051539		Light/lamp-oven,indicator ,(2)				$ 60.53
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
19	318005579		Panel-control,almond		Appelez-nous	-
20	318011411		Clock-timer		Appelez-nous	-
21	318027803		Trim Backguard,top		Appelez-nous	-
23	318015001		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
42	318106903		Trim-backguard,black ,bottom		Appelez-nous	-
46	5308006417		Lens-light/lamp, Indicator, Red, (2)				$ 19.06
54	318120501		Switch-surface Unit, (4)				$ 244.13
54	5500-200		Switch-surface Unit, Large, (2)   (Replaces: 5303311186)			Immediately	$ 54.85
64	318112200		Mtg Rocker Switch		Appelez-nous	-
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
*40840	5303323145		Nut		Appelez-nous	-
*40841	5303311124		Screw,(4)		Appelez-nous	-
*40842	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
