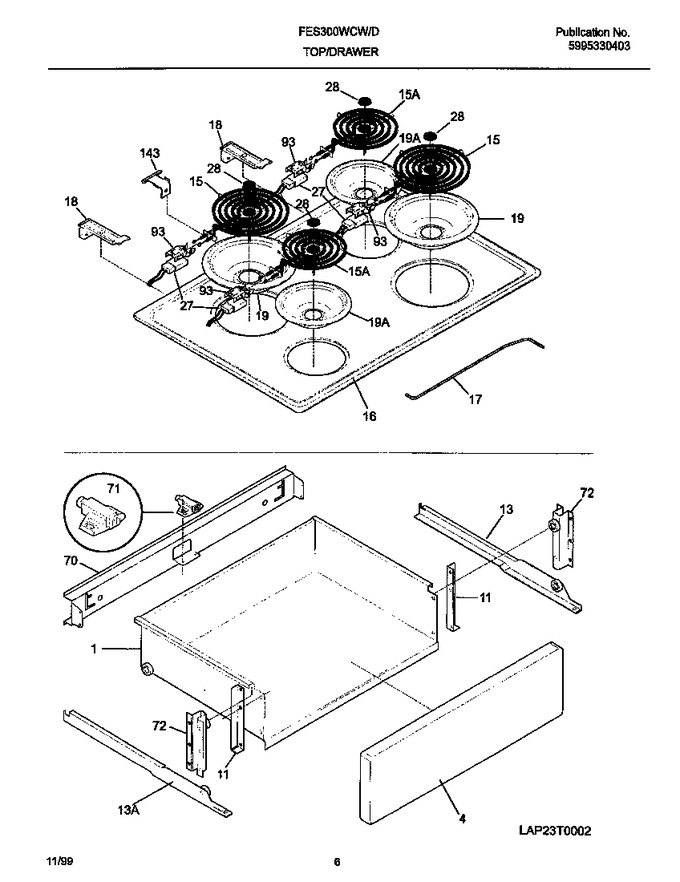

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer-utility   (Replaces: 5303310500)			Immediately	$ 143.39
4	5303311131		Panel-drawer, Almond		Appelez-nous	-
11	5303311125		Bracket,drawer		Appelez-nous	-
13	5303311130		Channel,drawer ,lh		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
15	5308011964		Element,surface ,large/8 Inch ,(2) ,medallion Incl				$ 209.08
15	316439802		Element-surface, Small/6 Inch, (2)   (Replaces: 5303299749)			Immediately	$ 192.78
16	5303300167		Main Top, Almond		Appelez-nous	-
17	3051554		Rod-maintop Support		Appelez-nous	-
18	5303305530		Bracket-hinge, Main Top, (2)		Appelez-nous	-
19	316048414		Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336)			Immediately	$ 16.11
19	316048413		Pan-surface Element,large/8 Inch   (Replaces: 318067010)			Immediately	$ 9.85
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
70	5303311143		Bracket-slide		Appelez-nous	-
71	5303311144		Magnet & Spring Assy		Appelez-nous	-
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
93	318122500		Support,terminal Block ,(4)		Appelez-nous	-
143	5303300148		Bracket-hinge		Appelez-nous	-
*40845	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*40846	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
