SELECT A DIAGRAM
01 - Body

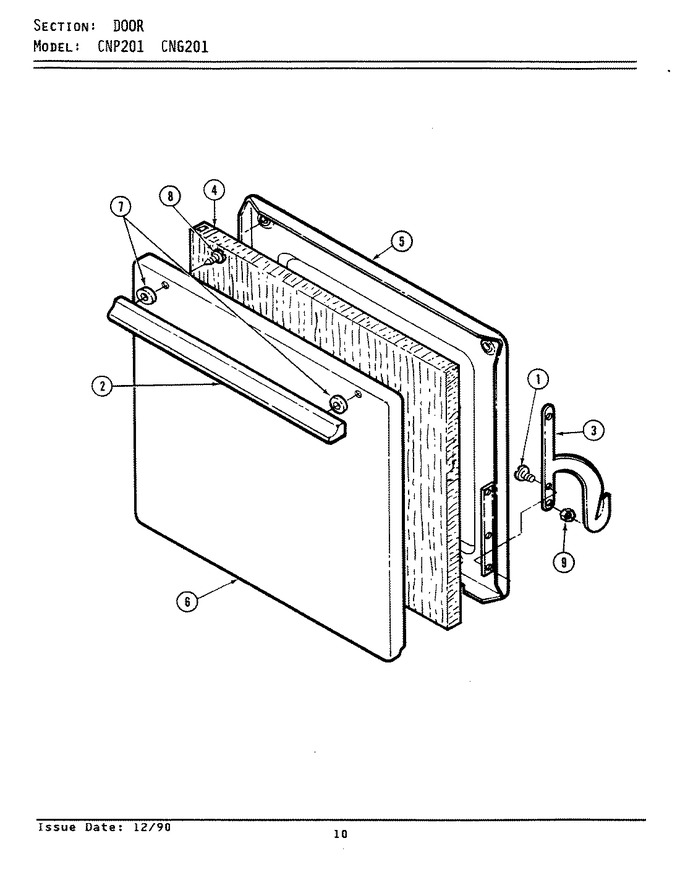

02 - Door
03 - Gas Controls (cnp2010axx)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7118P009-60 | Bolt, Shoulder |
|
- | |||||
| 2 | 7701P050-60 | Handle, Door (chr) |
|
- | |||||
| 3 | 7002P102-60 | Insulation, Oven Door |
|
- | |||||
| 4 | 3418F053-34 | Hinge, Oven Door |
|
- | |||||
| 5 | 2402W102-23 | Lining, Ov Dr |
|
- | |||||
| 6 | 2401W059-84 | Panel Door Alm |
|
- | |||||
| 6 | 2401W059-81 | Panel, Door (white) |
|
- | |||||
| 7 | 8010P020-60 | Spacer, Door Handle |
|
- | |||||
| 7 | M0282009 | Nut 10-24 (Replaces: 7103P071-60) |
|
$ 12.06 | |||||
| 8 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) |
|
Immediately | $ 7.69 | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P059-60) |
|
Immediately | $ 6.85 | ||||
| 9 | W10080180 | Nut Lock (Replaces: 7103P072-60) |
|
$ 12.13 |
