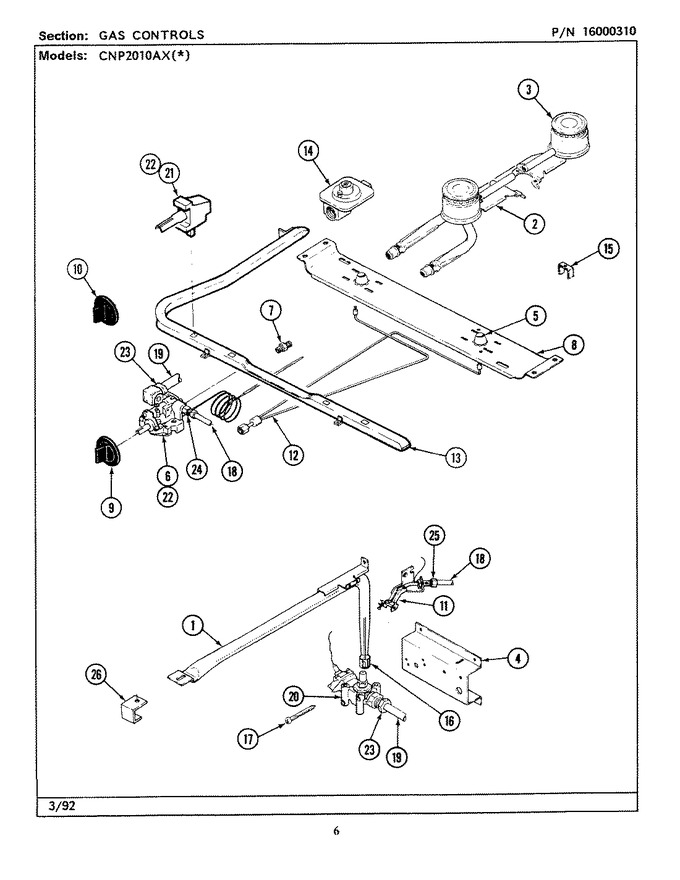

03 - Gas Controls (cnp2010axx)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3403A005-45		Burner Oven Assy	07	Appelez-nous	-
1	3403D040-45		Burner, Oven	08	Appelez-nous	-
2	7505P173-60		Burner, Top (frt)	07	Appelez-nous	-
3	7505P172-60		Burner, Top (rear)	07	Appelez-nous	-
4	3807F369-45		Support, Oven Valve	07	Appelez-nous	-
5	8030P001-60		Cone, Top Lighter----na	07	Appelez-nous	-
6	7101P010-60		Screw, Control	07	Appelez-nous	-
6	7515P033-60		Thermostat	07	Appelez-nous	-
7	7505P073-60		Pilot, Burner (top)	09	Appelez-nous	-
7	7507P032-60		Filter, Top Lighter	07	Appelez-nous	-
8	3807F353-80		Support, Top Burner	07	Appelez-nous	-
9	7731P006-60		Knob, Thermostat	07	Appelez-nous	-
10	7733P010-60		Knob, Valve	07	Appelez-nous	-
11	Y0L01002199		Lighter Ov. Br.	07	Appelez-nous	-
12	7432P049-60		Lighter, Top Burner	07	Appelez-nous	-
12	7505P073-60		Pilot, Burner (top)	09	Appelez-nous	-
13	7513P144-60		Pipe Manifold	07	Appelez-nous	-
14	7510P022-60		Regulator Pressure	07	Appelez-nous	-
15	3604F122-51		Shield Top Lighter	07	Appelez-nous	-
16	3411F006-34		Mixer Air Oven Burner	07	Appelez-nous	-
17	WP7101P062-60		Screw No.10 X 2   (Replaces: 7101P062-60)	07			$ 7.24
18	3414F013-44		Tubing, Cntrl/pilo (3/16``)	07	Appelez-nous	-
19	3414F044-44		Tubing, 3/8	07	Appelez-nous	-
20	7501P053-60		Valve, Oven	07	Appelez-nous	-
21	7502P187-60		Valve, Burner	07	Appelez-nous	-
22	7101P044-60		Screw, Valve	07	Appelez-nous	-
23	1555251		Nut, Loxit (3/8``)	07	Appelez-nous	-
24	1555222		Nut, Loxit (3/16``)	07	Appelez-nous	-
25	1555261K		Nut & Ferrule (3/16``)	07	Appelez-nous	-
26	WP7101P126-60		Screw   (Replaces: 7101P061-60)	07		Immediately	$ 6.85
26	3807F336-51		Support, Burner	07	Appelez-nous	-
