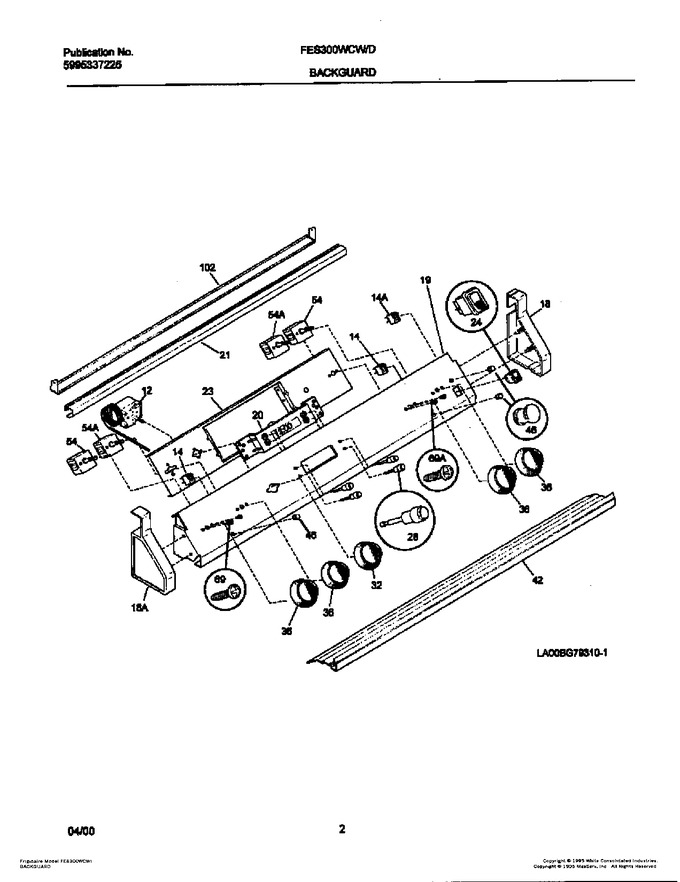

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	6700G0001		Thermostat-oven   (Replaces: 5303311369)			Immediately	$ 295.97
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
19	318182764		Panel-control,metal		Appelez-nous	-
20	318184801		Clock-timer		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
23	318015001		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
28	5303272306		Push Button,clock Set ,black ,(2)		Appelez-nous	-
32	318016306		Knob-thermostat		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
42	318106903		Trim-backguard,black ,bottom		Appelez-nous	-
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
54	318120501		Switch-surface Unit, (4)				$ 244.13
54	5500-200		Switch-surface Unit, Large, (2)   (Replaces: 5303311186)			Immediately	$ 54.85
69	5303288565		Screw, Switch Mtg., 8-32 X 3/16   (Replaces: 5303323134)				$ 3.12
102	318055601		Bracket-mounting				$ 34.13
*06720	08002868		Screw 10 X 24 X 1/2				$ 14.18
*06721	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*06722	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*06723	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
*06724	5303311124		Screw,(4)		Appelez-nous	-
*06725	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*06726	5303311532		Screw, Back		Appelez-nous	-
*06727	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*06728	5303323145		Nut		Appelez-nous	-
14A	5303051533		Light-lamp/indicator				$ 53.81
14B	5303323991		Light/lamp,indicator				$ 26.25
