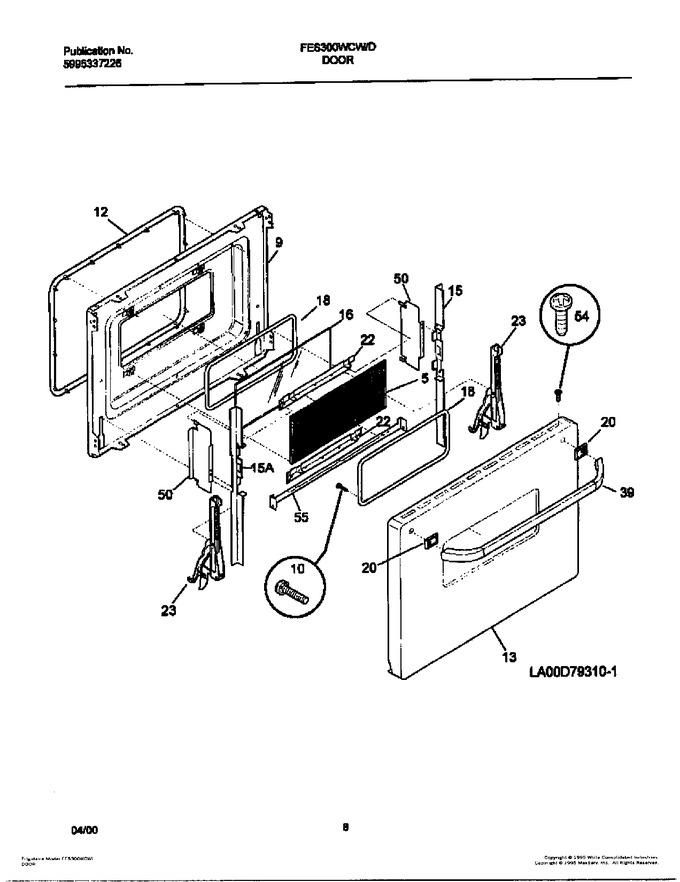

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303310508		Glass-oven Door,tinted ,inner		Appelez-nous	-
9	318112910		Liner-oven Door		Appelez-nous	-
10	732022890		Screw Handle,10-24 X 5/8   (Replaces: 5303324305)			Immediately	$ 1.84
12	318053301		Seal-oven Door			Immediately	$ 122.90
13	318009026		Panel-oven Door,white		Appelez-nous	-
15	5303311137		Bracket-glass Mtg, Lh		Appelez-nous	-
15	5303311136		Bracket-glass Mtg, Rh		Appelez-nous	-
16	318041620		Glass-oven Door,heat Barrier				$ 906.47
18	318053203		Gasket				$ 57.54
20	318014301		Spacer,handle ,white ,(2)				$ 48.88
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
39	316091119		Handle-door, White, Oven		Appelez-nous	-
50	318144900		Re-enforcement Glass		Appelez-nous	-
54	316021109		Screw,8-18 X 17/32 ,white   (Replaces: 5303317175)			Immediately	$ 27.50
54	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
55	318122300		Bracket-glass				$ 11.39
*06746	3201899		Washer,hinge Assy		Appelez-nous	-
*06747	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*06748	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*06749	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*06750	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*06751	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
