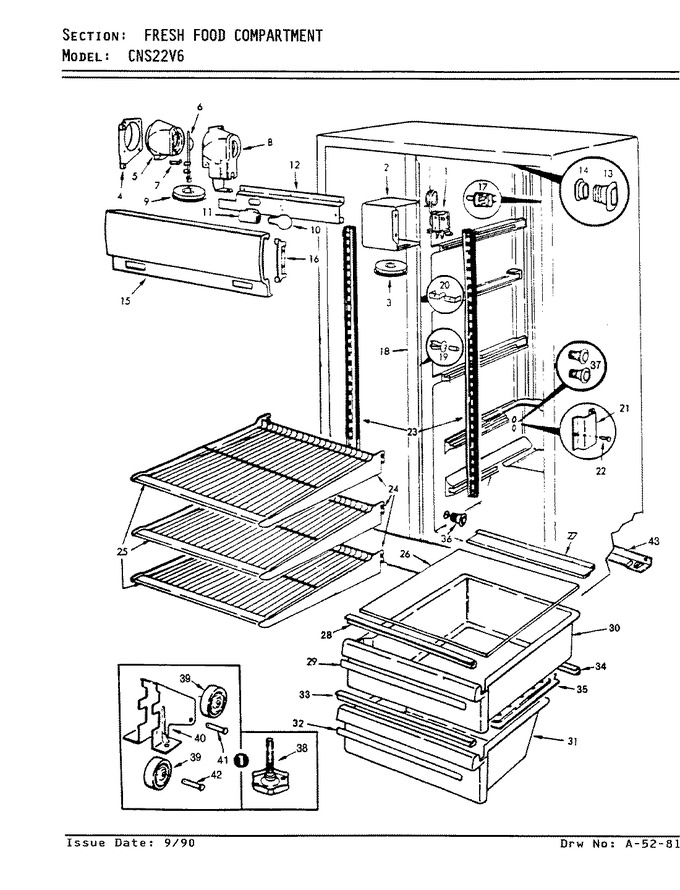

03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67692-1 | Insulation, Control |
|
- | |||||
| 1 | VC1RF | Control, Temperature (Replaces: 52881-23) |
|
Immediately | $ 35.95 | ||||
| 1 | 401012-1 | Screw, Control Mounting |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 2 | 53682-10 | Housing, Temperature Control |
|
- | |||||
| 3 | 29893-7 | Knob, Temp. Control |
|
- | |||||
| 4 | 53835-2 | Orifice, Freezer Control |
|
- | |||||
| 5 | 58767-1 | Insulation, Housing |
|
- | |||||
| 6 | 52587-2 | Damper |
|
- | |||||
| 7 | 52648-1 | Spring, Baffle |
|
- | |||||
| 8 | 58760-2 | Housing, Freezer Control |
|
- | |||||
| 8 | 400027-1 | Screw |
|
- | |||||
| 9 | 402005-103 | Screw |
|
- | |||||
| 9 | 29893-12 | Knob |
|
- | |||||
| 10 | W10887190 | Bulb, Light (60w) (Replaces: 55771-2) |
|
Immediately | $ 16.48 | ||||
| 11 | 29814-2 | Receptacle, Light |
|
- | |||||
| 12 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 12 | 59740-2 | Housing, Light Socket & Wires |
|
- | |||||
| 13 | 57410-1 | Tunnel |
|
- | |||||
| 14 | 57411-1 | Retainer |
|
- | |||||
| 15 | 65578-19 | Shield, Light |
|
- | |||||
| 16 | 53686-2 | Support |
|
- | |||||
| 16 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 16 | 495032-900 | Plug |
|
- | |||||
| 17 | 65512-1 | Spacer |
|
- | |||||
| 17 | 56432-2 | Switch |
|
- | |||||
| 18 | 67000-1-AM | Mullion Bar (almond) |
|
- | |||||
| 19 | 59920-9 | Stud, (alm) |
|
- | |||||
| 20 | 53060-4 | Clip |
|
- | |||||
| 21 | 62128-1 | Air Deflector |
|
- | |||||
| 22 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 23 | 400037-1 | Screw |
|
- | |||||
| 23 | 58381-1 | Support |
|
- | |||||
| 24 | 65606-2 | Shelf, Wire |
|
- | |||||
| 25 | 66649-2 | Trim, Shelves (front) |
|
- | |||||
| 26 | 65687-2 | Shelf, Crisper |
|
- | |||||
| 27 | 66092-2 | Crisper Seal |
|
- | |||||
| 28 | 66650-2 | Seal, Crisper Pan (front) |
|
- | |||||
| 29 | 68124-59 | Insert |
|
- | |||||
| 30 | 65769-13 | Pan, Crisper |
|
- | |||||
| 31 | 65770-10 | Pan |
|
- | |||||
| 32 | 68124-60 | Insert |
|
- | |||||
| 33 | 65648-2 | Seal, Meat Pan (front) |
|
- | |||||
| 34 | 65649-2 | Seal, Meat Pan (rear) |
|
- | |||||
| 35 | 65608-4 | Cover, Meat Pan |
|
- | |||||
| 36 | 53726-2 | Tunnel, Air (meat) |
|
- | |||||
| 37 | 53726-1 | Air Tunnel |
|
- | |||||
| 38 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 39 | 29834-2 | Wheel |
|
- | |||||
| 40 | 52846-1 | Bracket |
|
- | |||||
| 40 | 400062-1 | Screw |
|
- | |||||
| 41 | 64965-3 | Pin, Wheel (rear) |
|
- | |||||
| 42 | 64965-1 | Pin, Wheel |
|
- | |||||
| 43 | 67255-2 | Support Rail Rear |
|
- | |||||
| 43 | 3400518 | Screw (Replaces: 65275-42) |
|
$ 11.68 |
