SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

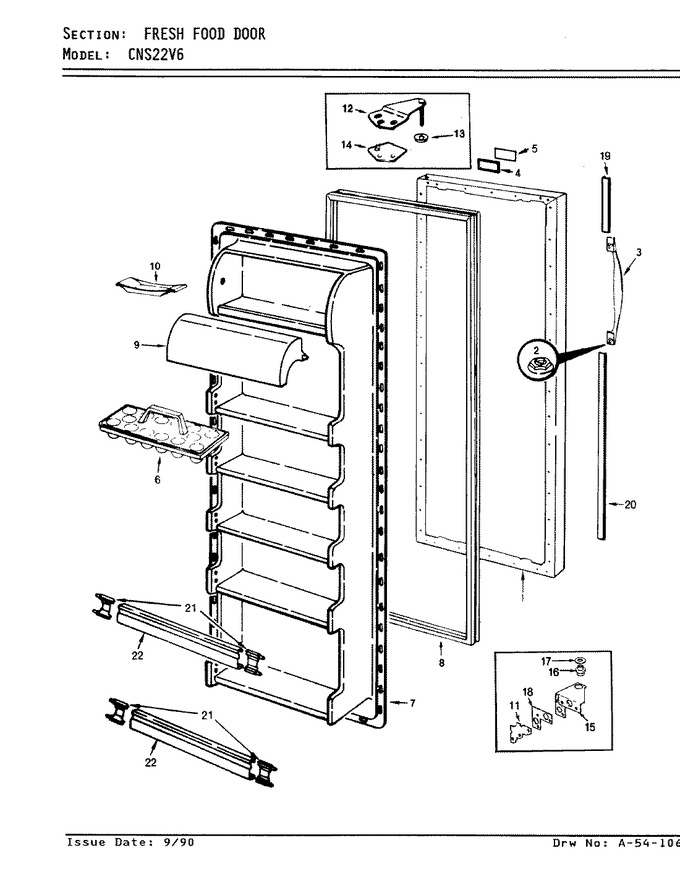

04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	72048-7-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	434003-506		Fastener		Appelez-nous	-
3	63686-9		Handle		Appelez-nous	-
4	66981-4		Insert, Nameplate		Appelez-nous	-
5	66982-11		Insert, Nameplate		Appelez-nous	-
6	60066-1		Tray, Egg		Appelez-nous	-
7	65275-5		Screw		Appelez-nous	-
7	65945-10		Liner, F.f. Door		Appelez-nous	-
8	66929-14		Gasket		Appelez-nous	-
9	66184-147		Door, Dairy		Appelez-nous	-
10	29936-2		Tray, Butter		Appelez-nous	-
11	65964-2		Tapping Plate		Appelez-nous	-
12	62829-2		Pin Door Stop		Appelez-nous	-
12	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
12	53709-18		Door Hinge, Upper		Appelez-nous	-
13	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
14	65031-1		Shim, Upper Hinge		Appelez-nous	-
15	403100-801		Screw		Appelez-nous	-
15	67714-10		Hinge, Lower		Appelez-nous	-
16	68788-1		Hinge Pin		Appelez-nous	-
17	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
18	60626-1		Shim, Lower Hinge		Appelez-nous	-
19	68657-15		Trim Ext		Appelez-nous	-
20	68657-16		Trim Ext		Appelez-nous	-
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	65151-299		Trim, Door Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
