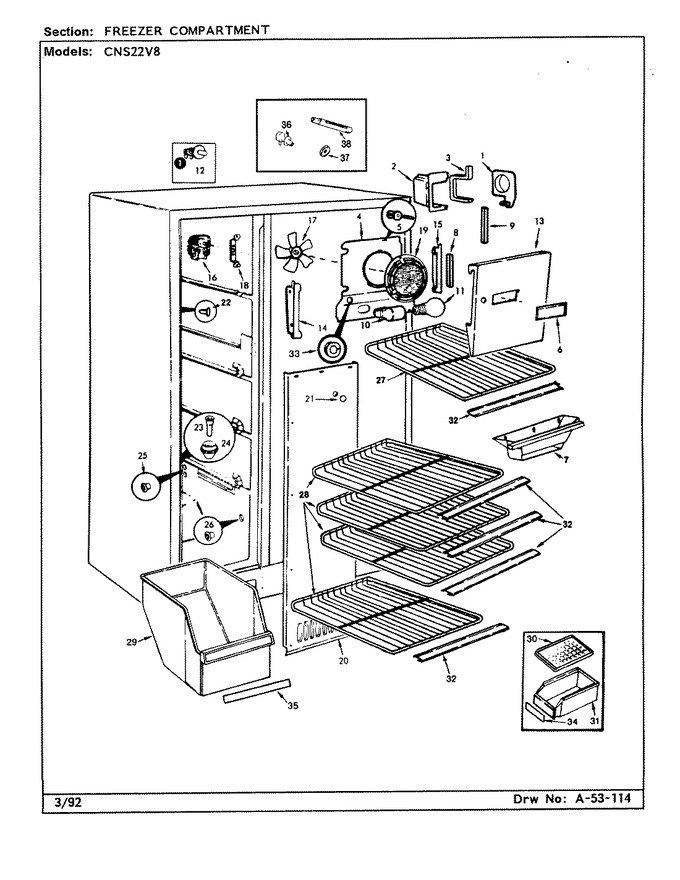

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54423-1		Orifice		Appelez-nous	-
2	53837-1		Shield		Appelez-nous	-
3	52077-10		Seal		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
4	62690-31		Cover, Coil		Appelez-nous	-
5	59920-1		Stud, Mounting Coil Cover		Appelez-nous	-
6	68325-1		Insert----na		Appelez-nous	-
7	65693-1		Air Duct Asm		Appelez-nous	-
8	68946-4		Seal		Appelez-nous	-
9	66325-33		Seal		Appelez-nous	-
10	29814-2		Receptacle, Light		Appelez-nous	-
11	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
12	56432-2		Switch		Appelez-nous	-
13	68611-3		Shield		Appelez-nous	-
14	53687-2		Support		Appelez-nous	-
15	54424-2		Support		Appelez-nous	-
16	56488-4		Motor		Appelez-nous	-
17	52120-1		Blade, Fan Frzr.		Appelez-nous	-
18	64856-2		Bracket, Fan Motor		Appelez-nous	-
19	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
19	62689-1		Fan Grid		Appelez-nous	-
20	67335-7		Cover, Coil (lower)		Appelez-nous	-
20	68612-1		Gasket		Appelez-nous	-
21	495015-900		Plug Button		Appelez-nous	-
22	67557-1		Plug Button		Appelez-nous	-
23	26527-9		Drain Tube		Appelez-nous	-
24	52526-1		Grommet		Appelez-nous	-
25	67685-1		Retainer		Appelez-nous	-
26	53727-1		Retainer, Air Tunnel		Appelez-nous	-
27	66603-37		Shelf, 1		Appelez-nous	-
28	66603-42		Shelf, 2,3, & 4		Appelez-nous	-
29	66512-20		Drawer, Frz.		Appelez-nous	-
30	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
31	66592-1		Pan		Appelez-nous	-
32	66649-4		Trim, Shelf		Appelez-nous	-
33	53933-1		Plug		Appelez-nous	-
34	68134-13		Insert		Appelez-nous	-
35	68124-58		Insert		Appelez-nous	-
36	68396-1		Grommet		Appelez-nous	-
37	68187-1		Cap, Connector		Appelez-nous	-
38	68304-2		Extension,grommet To Fill Tube		Appelez-nous	-
38	68326-1		Cap, Fill Tube		Appelez-nous	-
