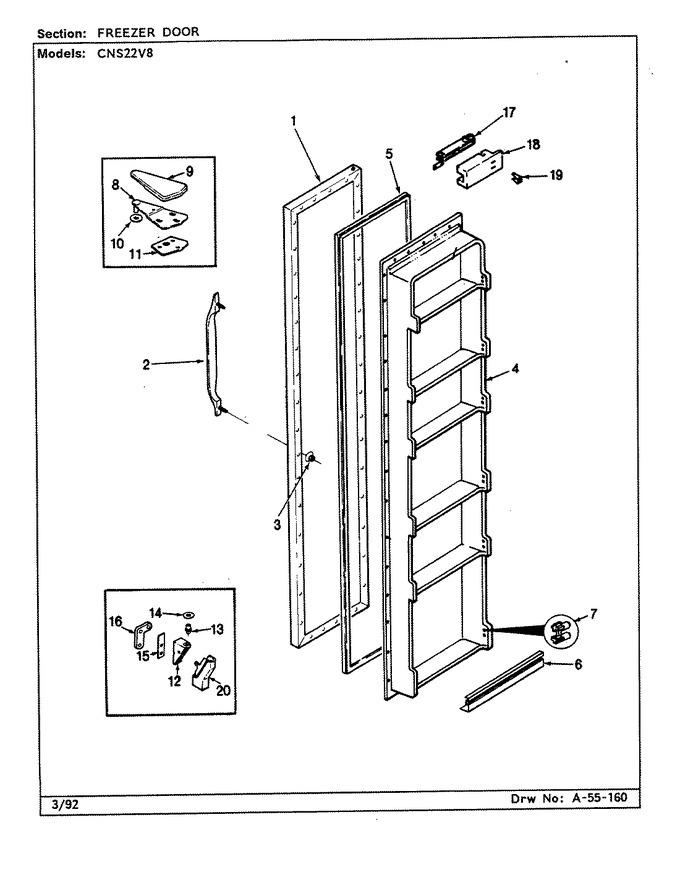

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (imkss1)


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72046-11-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	63686-10		Handle		Appelez-nous	-
3	434003-506		Fastener		Appelez-nous	-
4	59433-215		Inner Panel		Appelez-nous	-
4	65275-5		Screw		Appelez-nous	-
5	66929-28		Gasket		Appelez-nous	-
6	WP61003045		Trim, Door Shelf   (Replaces: 65151-3)				$ 129.55
7	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
8	53709-22		Hinge, Upper		Appelez-nous	-
9	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
9	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
10	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
11	65031-1		Shim, Upper Hinge		Appelez-nous	-
12	65275-51		Screw, Lower Hinge		Appelez-nous	-
12	68975-2		Hinge, Lower		Appelez-nous	-
13	68977-1		Pin, Hinge		Appelez-nous	-
14	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
15	69031-1		Shim		Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
16	65275-10		Screw, Tapping Plate		Appelez-nous	-
17	54485-2		Door Closure		Appelez-nous	-
18	52613-1		Insulation, Closer		Appelez-nous	-
19	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
19	52614-1		Bracket, Closer		Appelez-nous	-
20	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
