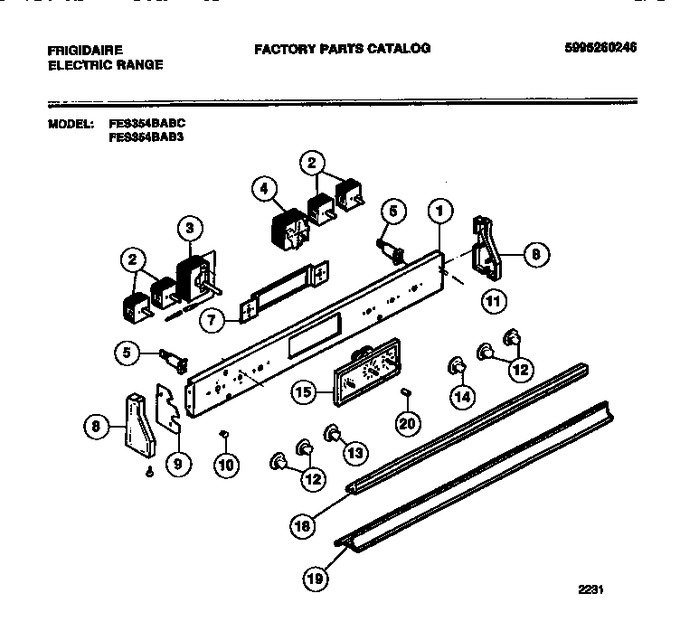

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300187		Panel-control		Appelez-nous	-
2	5303300157		Switch-small		Appelez-nous	-
2	5303300158		Switch-large		Appelez-nous	-
3	5303300188		Oven Control				$ 376.43
4	5303300189		Selector Switch				$ 256.62
5	5303051533		Light-signal Surface Unit				$ 53.81
5	5303271245		Light-signal-oven Clock		Appelez-nous	-
5	5303051849		Light-signal Oven		Appelez-nous	-
7	5303305529		Bracket-clock		Appelez-nous	-
8	5303307196		End Cap, Rh & Lh		Appelez-nous	-
9	5303284324		Plate-end Cap (2)		Appelez-nous	-
10	5308006417		Lens-light				$ 19.06
11	316005600		Switch-oven Light		Appelez-nous	-
12	5303299751		Knob-assy-s/u (4)		Appelez-nous	-
13	5303300190		Knob & Skirt-oven (1)		Appelez-nous	-
14	5303300191		Knob & Skirt-selector		Appelez-nous	-
15	316017404		Timer		Appelez-nous	-
18	5303300164		Top Trim		Appelez-nous	-
19	5303300165		Extrusion Bottom Rail		Appelez-nous	-
20	316029000		Knob-timer		Appelez-nous	-
