01 - Cover
02 - Backguard
03 - Top
04 - Door
05 - Body
06 - Drawer
New Model Search:

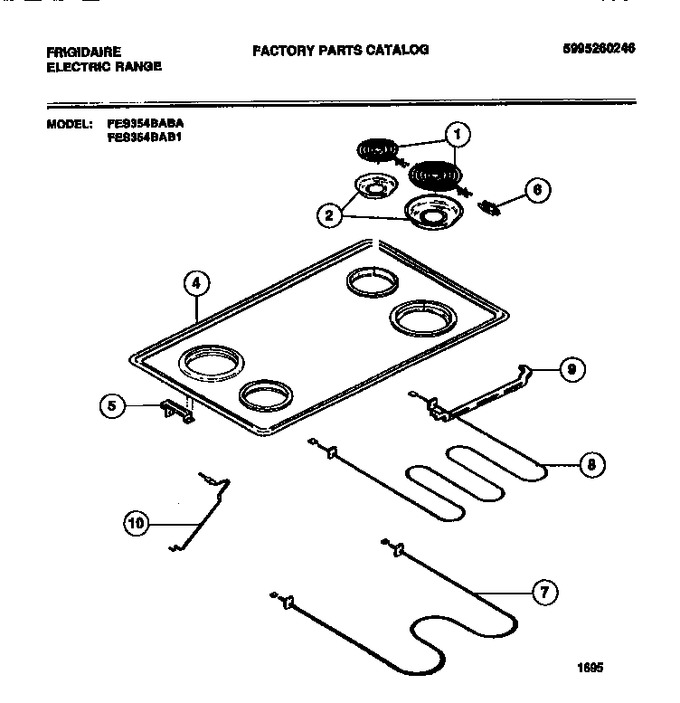

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303301461 | Center Trim (4) (n0n-illustrated) |
|
- | |||||
| 1 | 316442301 | Element-s/u-lg (2) (Replaces: 5303309001) |
|
Immediately | $ 44.39 | ||||
| 1 | PS12-4BK | Element-s/u-sm (2) (Replaces: 5303309000) |
|
Immediately | $ 35.96 | ||||
| 2 | 316048413 | Pan-large (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 2 | 316048414 | Pan-small (2) (Replaces: 5303280336) |
|
Immediately | $ 16.11 | ||||
| 4 | 5303051802 | Main Top |
|
- | |||||
| 5 | 5303305530 | Bracket-hinge |
|
- | |||||
| 6 | 5303935058 | Block-element (4) (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 7 | 5303051519 | Bake Element |
|
Immediately | $ 44.70 | ||||
| 8 | 5303051516 | Broil Element |
|
$ 189.23 | |||||
| 9 | 5303300179 | Hanger-broil Element |
|
- | |||||
| 10 | 3051554 | Cooktop Support Rod |
|
- |
