Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 72046-11-AM Panel, Frz. Door (alm) Appelez-nous -
2 63686-11 Handle Appelez-nous -
3 434003-506 Fastener Appelez-nous -
4 65275-5 Screw Appelez-nous -
4 59433-215 Inner Panel Appelez-nous -
5 66929-28 Gasket Appelez-nous -
6 WP61003045 Trim, Door Shelf   (Replaces: 65151-3) Special Order $ 129.55

7 WP65245-1 Retainer, Shelf Trim   (Replaces: 65245-1) Special Order $ 9.39

8 WP3-24838-048 Screw   (Replaces: 65275-52) Special Order $ 7.00

8 53709-22 Hinge, Upper Appelez-nous -
9 65003-3 Cover, Upper Hinge (alm) Appelez-nous -
10 WP52185-1 Washer   (Replaces: 52185-1) In-Stock Immediately $ 9.47

11 65031-1 Shim, Upper Hinge Appelez-nous -
12 67714-8 Hinge, Lower Appelez-nous -
12 403100-1 Screw Appelez-nous -
13 68977-1 Pin, Hinge Appelez-nous -
13 68788-1 Hinge Pin Appelez-nous -
14 67483-3 Washer, Lower Hinge   (Replaces: 67483-2) In-Stock Immediately $ 45.86

15 60626-1 Shim, Lower Hinge Appelez-nous -
16 65964-2 Tapping Plate Appelez-nous -
17 54485-2 Door Closure Appelez-nous -
18 52613-1 Insulation, Closer Appelez-nous -
19 52614-1 Bracket, Closer Appelez-nous -
19 WP489478 Screw   (Replaces: 400017-1) Special Order $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

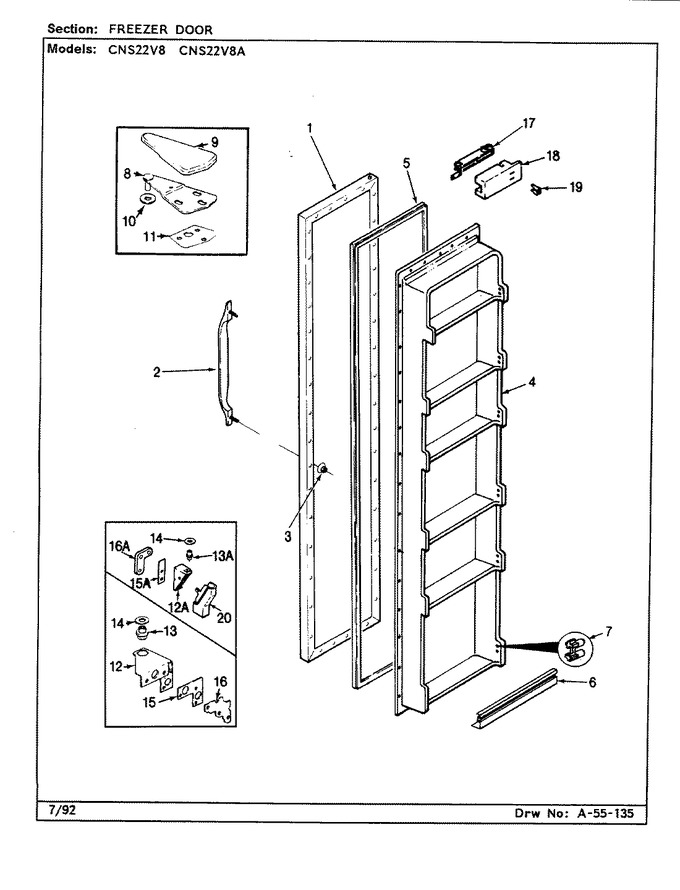

Diagram for CNS22V8A (BOM: BR17A)
