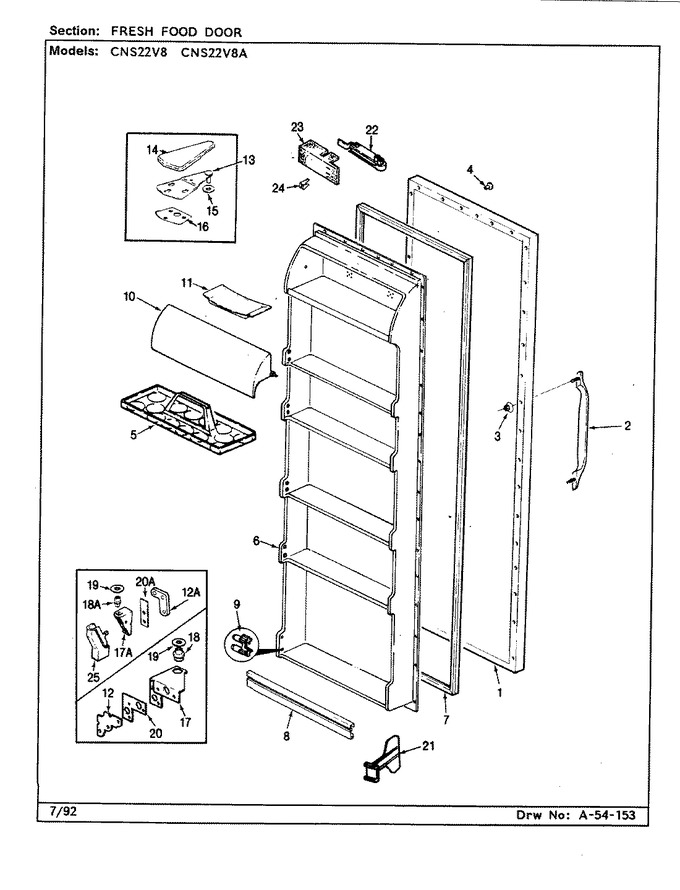

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	68459-6-AM		Panel, Outer Door		Appelez-nous	-
2	63686-11		Handle		Appelez-nous	-
3	434003-506		Fastener		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	60066-1		Tray, Egg		Appelez-nous	-
6	65945-10		Liner, F.f. Door		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
7	66929-2		Gasket		Appelez-nous	-
8	65151-299		Trim, Door Shelf		Appelez-nous	-
9	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
10	66184-446		Door, Dairy		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	65964-2		Tapping Plate		Appelez-nous	-
13	53709-22		Hinge, Upper		Appelez-nous	-
13	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
14	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
15	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	403100-1		Screw		Appelez-nous	-
17	67714-10		Hinge, Lower		Appelez-nous	-
18	68788-1		Hinge Pin		Appelez-nous	-
19	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
20	60626-1		Shim, Lower Hinge		Appelez-nous	-
21	64097-11		Organizer, Shelf		Appelez-nous	-
22	54485-2		Door Closure		Appelez-nous	-
23	52613-1		Insulation, Closer		Appelez-nous	-
24	52614-1		Bracket, Closer		Appelez-nous	-
24	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
