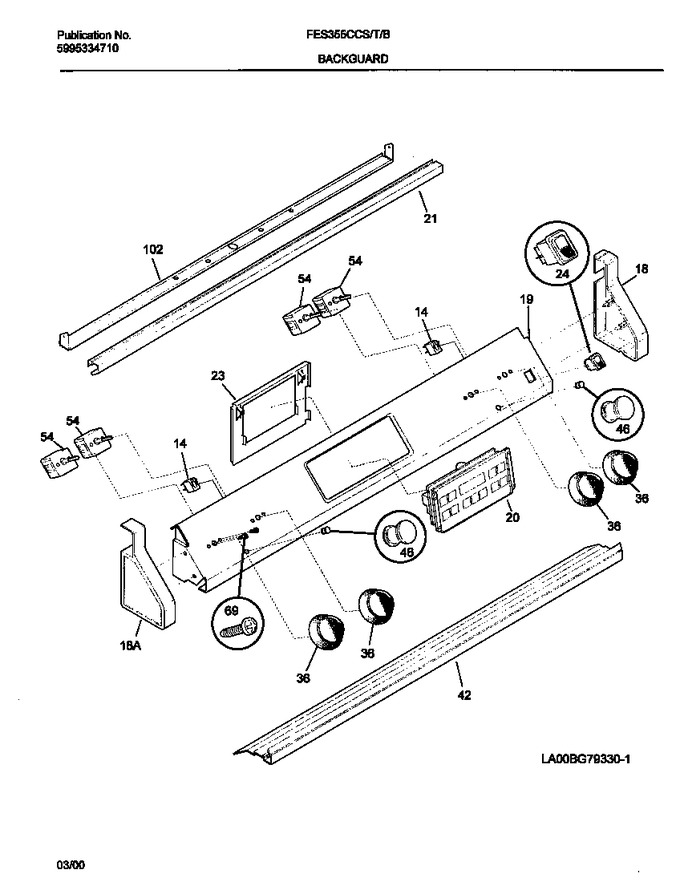

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303051533		Light-lamp/indicator				$ 53.81
18	5303300161		End Cap, Black, Lh		Appelez-nous	-
18	5303300160		End Cap, Black, Rh		Appelez-nous	-
18	5303304672		End Cap, Almond, Lh		Appelez-nous	-
18	5303304669		End Cap, Almond, Rh		Appelez-nous	-
19	318005500		Panel-control, Black		Appelez-nous	-
19	318005547		Panel-control, Almond		Appelez-nous	-
20	318012918		Clock/timer, Eoc, Almond		Appelez-nous	-
20	318012917		Clock/timer, Eoc, Black		Appelez-nous	-
21	318027803		Trim,backguard ,black ,top		Appelez-nous	-
21	318027805		Trim-backguard,top		Appelez-nous	-
23	318015020		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
24	316005608		Switch-rocker,oven Light ,almond		Appelez-nous	-
36	318164503		Knob,temp Control ,almond		Appelez-nous	-
36	5303299751		Knob-surface Unit, Black, (4)		Appelez-nous	-
42	318106928		Trim-backguard,almond ,bottom		Appelez-nous	-
42	318106927		Trim,backguard ,black ,bottom				$ 188.06
46	318044511		Lens-indicator Light   (Replaces: 318044510)			Immediately	$ 25.66
54	318120501		Switch-surface Unit, (4)				$ 244.13
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
102	318055601		Bracket-mounting				$ 34.13
*85600	3201861		Screw, 6 X 3/8				$ 0.76
*85601	08002868		Screw 10 X 24 X 1/2				$ 14.18
*85602	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
*85603	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*85604	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*85605	5303311306		Screw,8-18 X 0.375		Appelez-nous	-
*85606	5303311532		Screw, Back		Appelez-nous	-
*85607	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*85608	5303323145		Nut		Appelez-nous	-
