Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304505701 Drawer-utility   (Replaces: 5303310500) In-Stock Immediately $ 143.39

4 5303311131 Panel-drawer, Almond Appelez-nous -
11 5303311125 Bracket,drawer Appelez-nous -
13 5303311129 Channel,drawer ,rh Appelez-nous -
13 5303311130 Channel,drawer ,lh Appelez-nous -
15 PS12-4BK Element-surface, Small, 1500w   (Replaces: 5303309000) In-Stock Immediately $ 35.96

15 316442301 Element-surface, Large/8 Inch   (Replaces: 5303309001) In-Stock Immediately $ 44.39

16 5303300167 Main Top, Almond Appelez-nous -
17 3051554 Rod-maintop Support Appelez-nous -
18 5303305530 Bracket-hinge, Main Top, (2) Appelez-nous -
19 316048414 Pan-surface Element, Small/6 Inch, (2)   (Replaces: 5303280336) In-Stock Immediately $ 16.11

19 316048413 Pan-surface Element,large/8 Inch   (Replaces: 318067010) In-Stock Immediately $ 9.85

27 RR500 Terminal Block   (Replaces: 5303323704) In-Stock Immediately $ 9.42

28 5303301461 Medallion, Surface Element Appelez-nous -
70 5303311143 Bracket-slide Appelez-nous -
71 5303311144 Magnet & Spring Assy Appelez-nous -
72 5303311145 Bracket & Wheel Assy Appelez-nous -
93 318122500 Support,terminal Block ,(4) Appelez-nous -
143 5303300148 Bracket-hinge Appelez-nous -
*85622 3201899 Washer,hinge Assy Appelez-nous -
*85623 08002868 Screw 10 X 24 X 1/2 Special Order $ 14.18

*85624 08011955 Screw,10-24 X 3/8 ,square Drive In-Stock Immediately $ 9.36

*85625 08016432 Screw,truss Head ,8-18 X 0.375 ,(4) Appelez-nous -
*85626 134178901 Screw, 8 X 1/2   (Replaces: 5303211311) Special Order $ 14.89

*85627 5303300265 Screw,8-18 X 1/2 ,chrome Special Order $ 15.17

*85628 5303300414 Spacer, Cork & Rubber Special Order $ 13.18

*85629 5303311306 Screw,8-18 X 0.375 Appelez-nous -
*85630 5303288566 Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848) Special Order $ 2.12

*85631 5303325171 Washer,plastic Appelez-nous -
*85632 5303325174 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

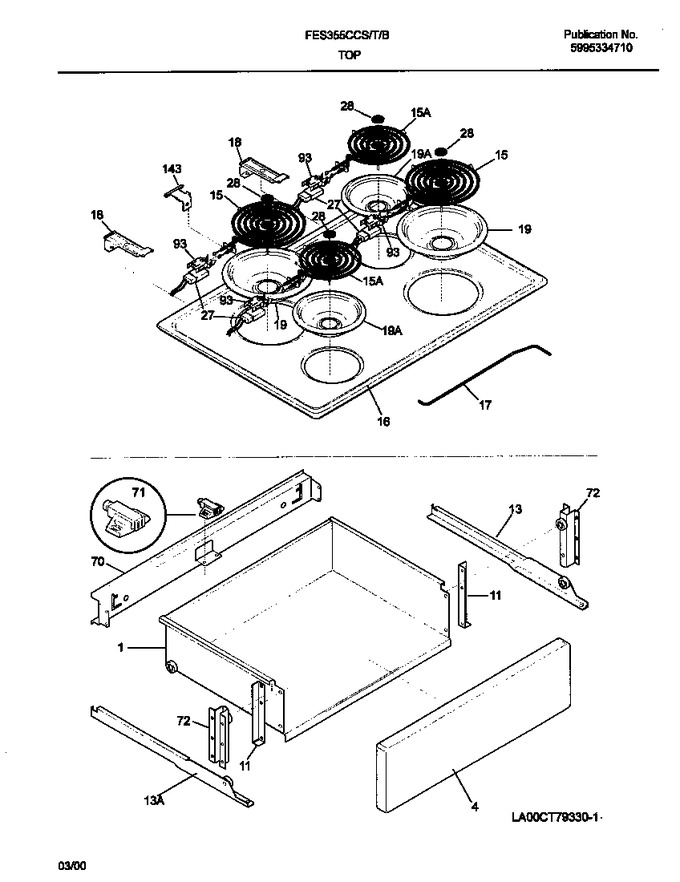

Diagram for FES355CCTJ
