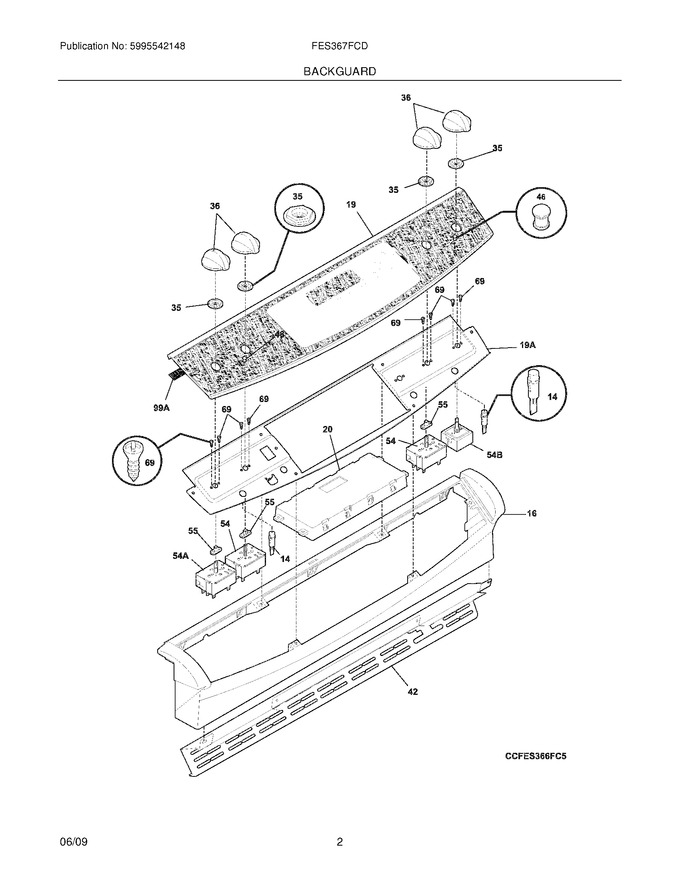

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318299102		Console,assy. ,black				$ 494.96
19	318312240		Control Panel Assembly,w/membrane ,stainless				$ 431.87
35	318183100		Support,glass ,black				$ 9.35
36	316223027		Knob,control ,black				$ 32.45
42	318298001		Trim,vent ,black ,upper				$ 59.01
46	318228301		Lens,indicator Light				$ 11.29
55	318402901		Bushing,switch				$ 17.72
69	5303288565		Screw,8-32 X 3/16 ,(4)   (Replaces: 5303323134)				$ 3.12
19A	318224403		Panel,control Mtg.				$ 199.61
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F14	318293901		Light,indicator ,125v ,(2)				$ 53.66
F20	316418530		Clock/timer,electronic ,es350				$ 343.20
F54	318293830		Switch,infinite ,(2)			Immediately	$ 94.36
F54A	318293831		Switch,surface Element ,large			Immediately	$ 92.69
F54B	318191023		Switch,infinite ,dual   (Replaces: 318191027)			Immediately	$ 70.64
FNI	318228860		Harness,wiring ,main ,backguard		Appelez-nous	-
FNI	318224811		Harness,wiring ,timer		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
