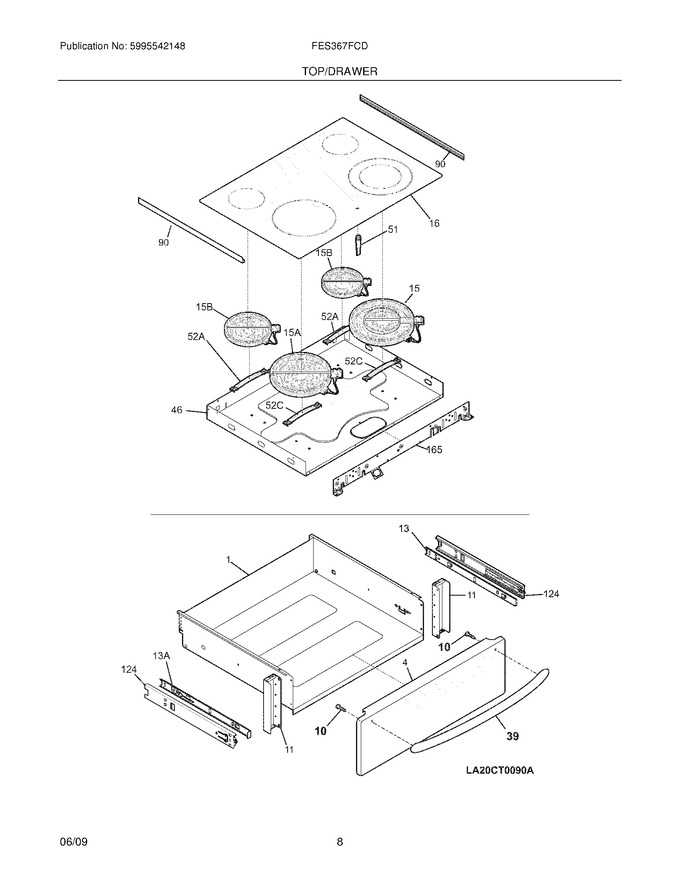

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318107317		Drawer   (Replaces: 318107313)				$ 144.09
4	318298829		Panel,drawer ,stainless ,front   (Replaces: 318298825)				$ 210.92
10	5303311174		Screw, 10-24 X 3/8			Immediately	$ 14.89
11	318298601		Bracket,drawer Support ,(2)		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
16	318223634		Main Top,glass Assy. ,black				$ 511.14
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
46	318225429		Box,burner				$ 84.21
90	318368001		Channel,glass Protector ,(2)				$ 22.98
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318227503		Plate,mounting				$ 247.59
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
52A	318122006		Spring,element Mtg ,small				$ 66.25
52C	318122010		Spring,element Mtg ,3000w				$ 62.51
F15	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 138.90
F15A	318198838		Element,surface ,9`` ,large ,2700 W				$ 315.47
F15B	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
F51	318044828		Light,indicator ,125v				$ 36.12
FNI	318228925		Harness,wiring ,cooktop				$ 100.85
FNI	318231843		Harness,wiring ,pilot Light		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
